YuzukiNeko

3D-printed enclosure

The repository’s 03_Shell_3D/ provides an enclosure for the board; the file is YuzukiNeko_case.3mf, adapted from dj.santos’s Pico enclosure (BY-NC-SA).

Preview

Section titled “Preview”

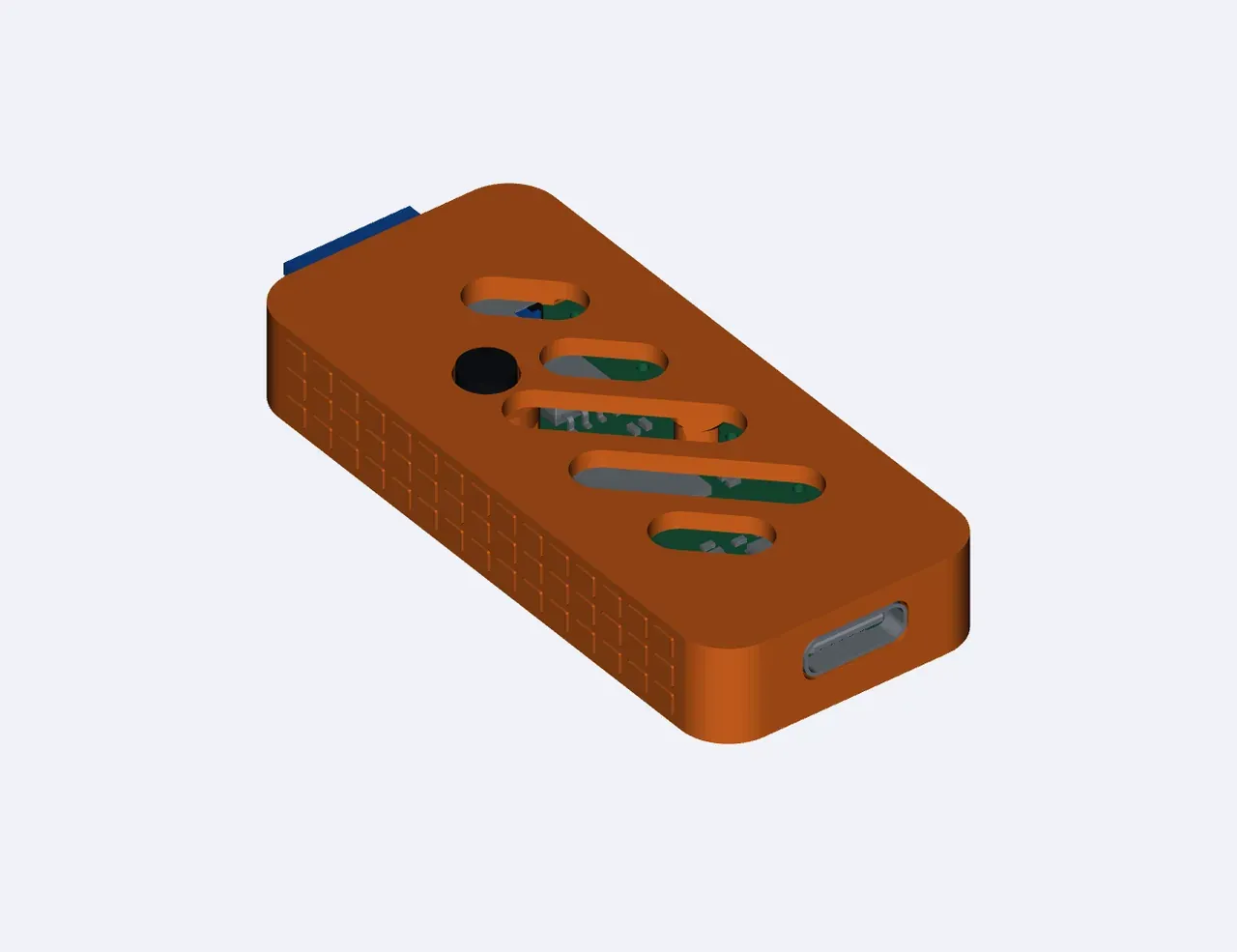

Assembled enclosure, USB-C end

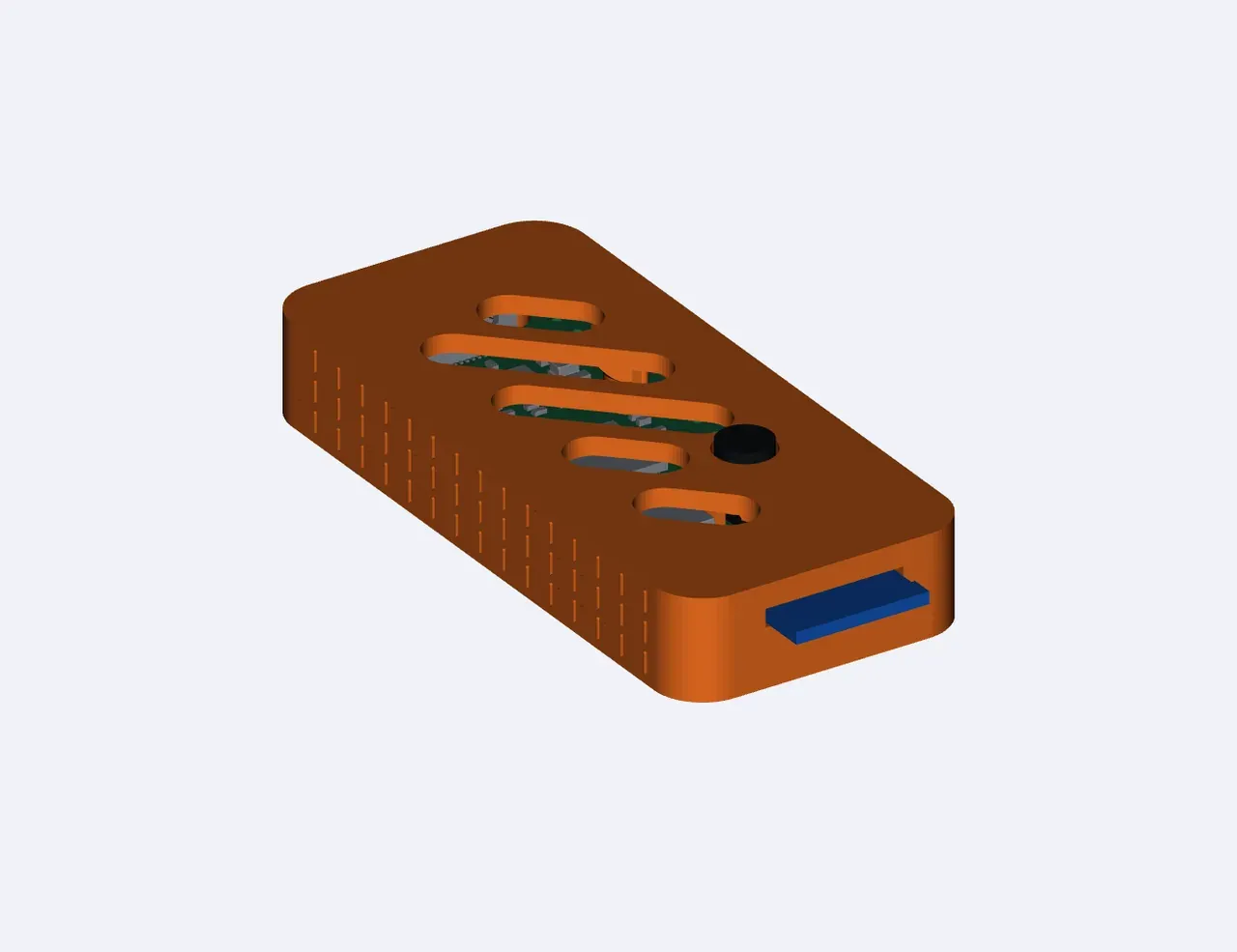

Assembled enclosure, microSD end

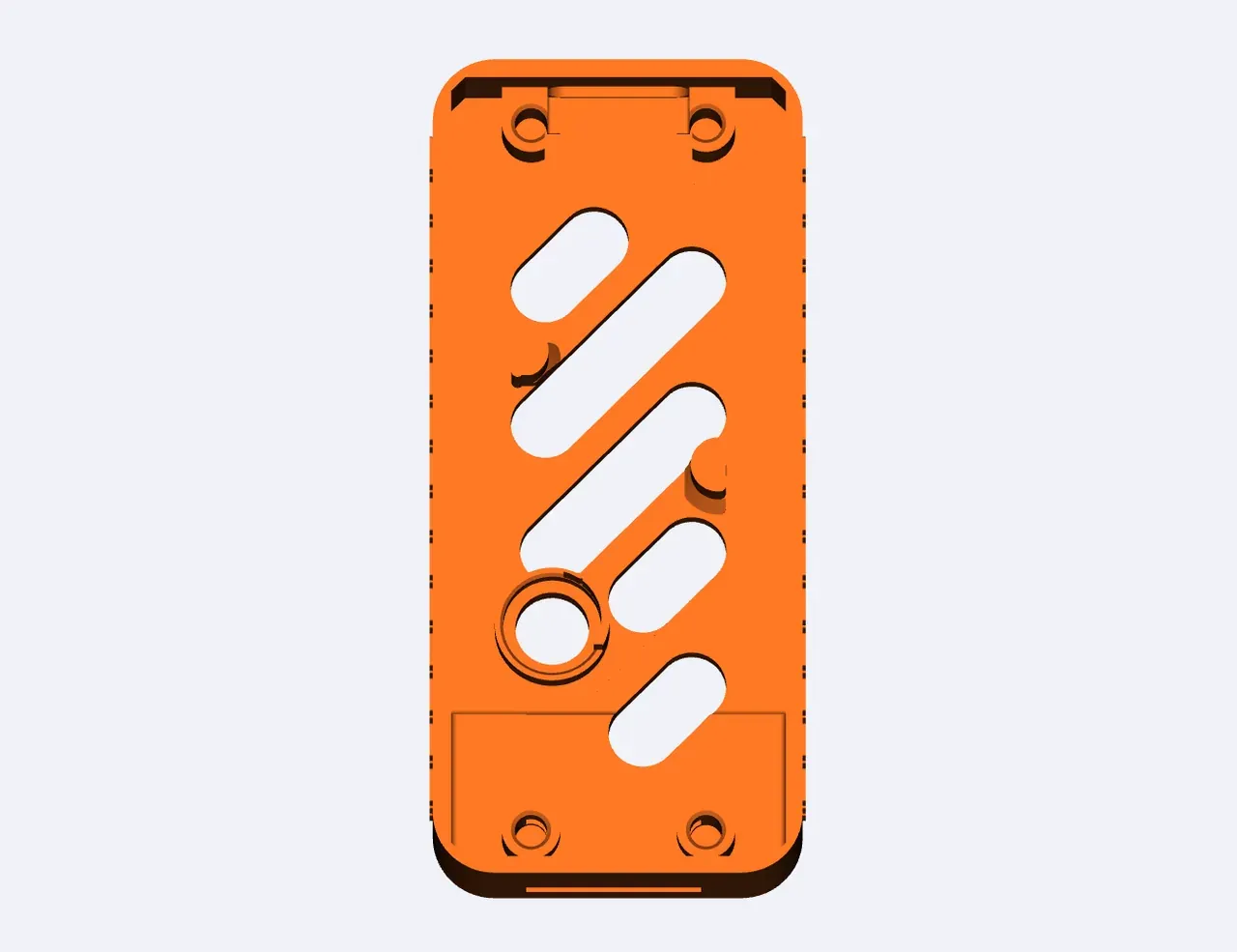

Inside of the top shell

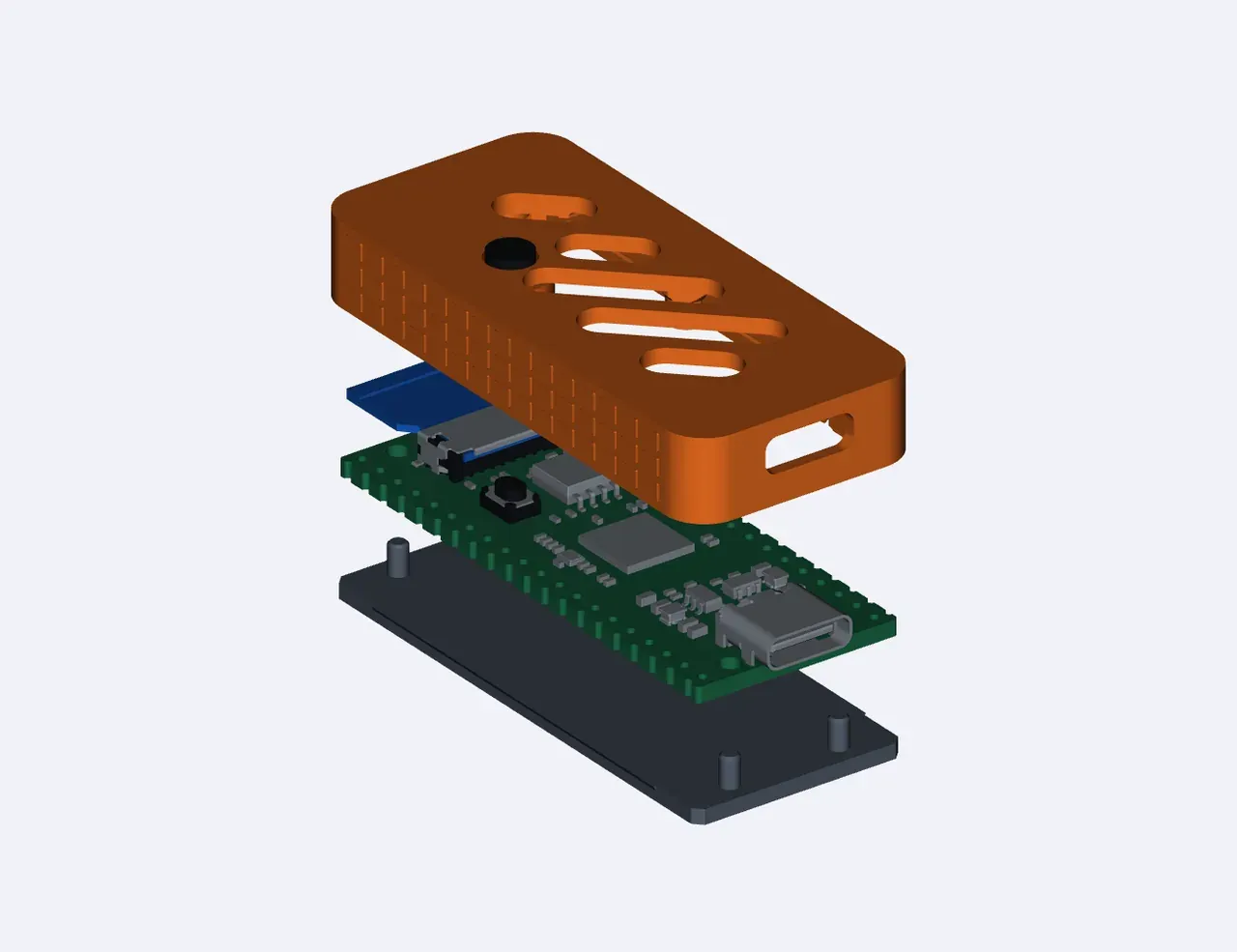

Exploded view

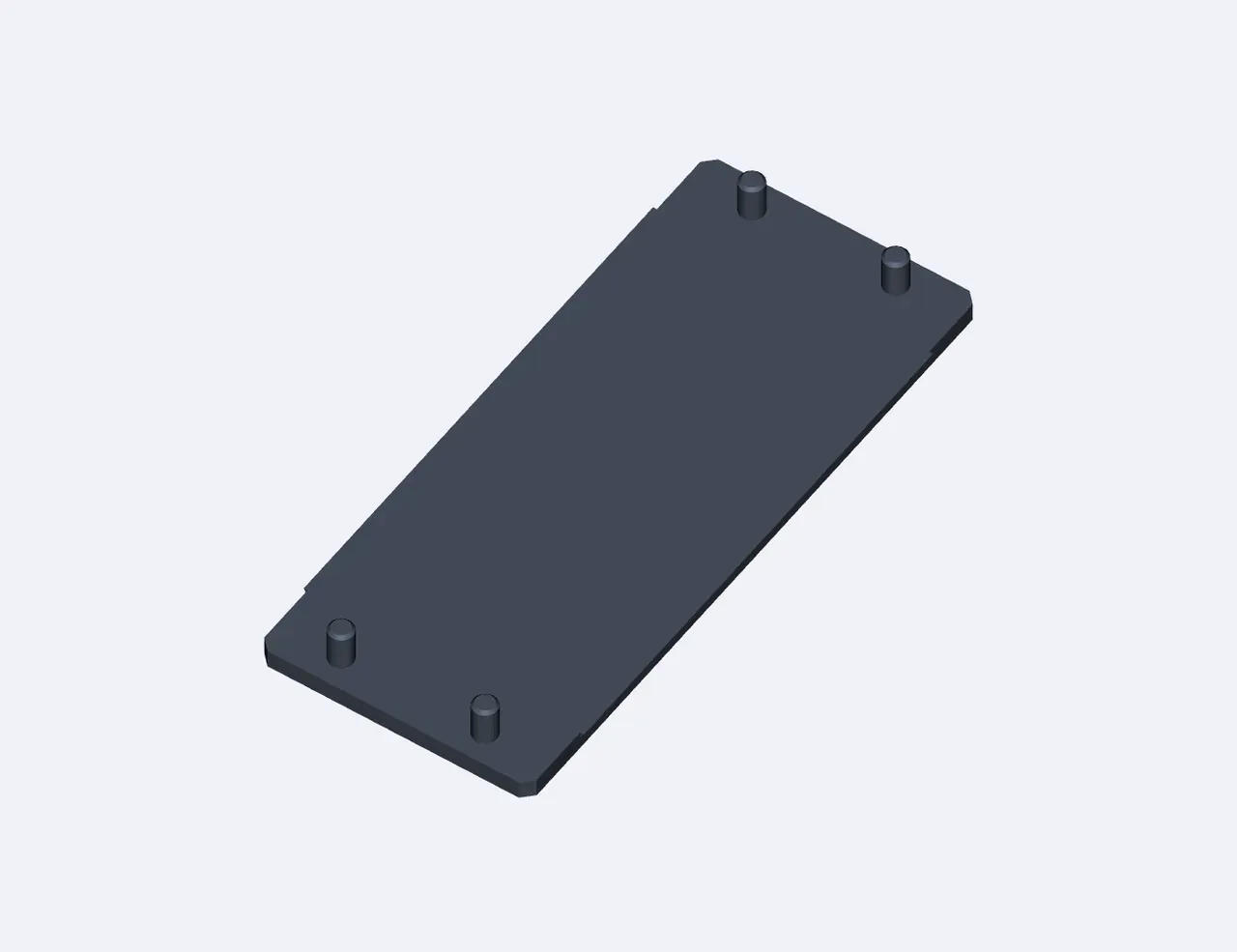

Flat-bottomed lower shell, with chamfered pin tips

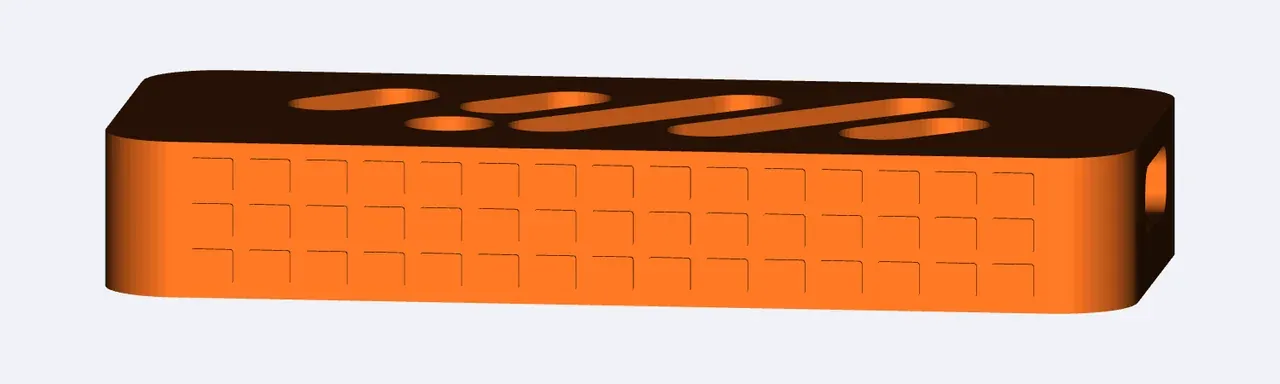

Symmetric side grips

Printing recommendations

Section titled “Printing recommendations”
  • Import the .3mf straight into your slicer; the lower shell has a flat bottom and chamfered pin tips, which makes it easy to print without supports.
  • The enclosure has openings at both the USB-C and microSD ends; do a trial fit before assembly.

License

Section titled “License”

The enclosure is adapted from a BY-NC-SA work, so follow its attribution, non-commercial and share-alike terms; the repository’s CC0 does not apply to it.
