Android screen mirroring

Mirror an Android phone’s screen onto the board’s screen and send touch and navigation keys back to the phone. The board connects to the phone’s adbd over WiFi (ADB over TCP), starts the scrcpy server on the phone, the server encodes the screen into an H.264 stream and sends it back, and the board decodes it with the on-chip video engine and sends it to the display video plane. The example is zephyr-components/android-screen-mirror/samples/mirror_player; the component itself (ADB client, pairing, scrcpy client) is in the src/ of the same directory.

flowchart TB
    PHONE["Android phone<br/>scrcpy-server · MediaCodec H.264"] -->|"ADB over TCP video stream"| ADB["AIC8800 WiFi<br/>adb.c stream multiplexing + ring buffer"]
    TOUCH["GT967 touchscreen"] --> RELAY["ui.c<br/>touch relay thread"]
    ADB --> SC["scrcpy.c<br/>H.264 packets"]
    RELAY -->|"touch / key messages"| SC
    SC -->|"Annex B"| VDEC["vdec video engine<br/>NV12 frames → display video plane"]
    SC -->|"control stream"| ADB
    ADB -->|"ADB over TCP control stream"| PHONE

Before you start, complete Setting up the development environment and Getting the Zephyr source. The WiFi part uses the AIC8800 WIFI driver; for the details of scanning, connecting and DHCP see that page.

Preparation

What you need

• Board: yuzukineko, using AIC8800 WiFi, the 1024×768 MIPI-DSI panel, the GT967 touchscreen (up to 5 points) and the TF card slot.
• Phone: an Android phone. Choose one of two connection methods: run adb tcpip once over a USB cable (any Android version), or use “Wireless debugging” (Android 11 and above).
• TF card: FAT or exFAT. Put scrcpy-server.jar on it; the board also writes wifi.cfg (WiFi name and password) and adbkey (the ADB private key) to the card.
• Network: the board and the phone are in the same WiFi, and the router must not have client isolation enabled; when using wireless debugging the router must also forward mDNS multicast.
• Computer: to download the scrcpy server; the adb tcpip method also needs adb.

Preparing the phone

Turning on developer options

1. Settings → About phone → tap “Build number” 7 times to enter developer mode.
2. Settings → System → Developer options (the menu location differs between vendors).
3. Turn on “USB debugging”.
4. Some vendors (MIUI-based systems, for example) also have a “USB debugging (Security settings)”; if it is not turned on, the system rejects touch and key injection. The picture is unaffected, so the symptom is “you can watch but not tap”.

Method one: adb tcpip (fixed address)

Connect the phone to the computer over USB and run once:

adb tcpip 5555
adb shell ip route

In the output of the second command the address after src is the phone’s WiFi address. The USB cable can then be unplugged. This setting is lost when the phone reboots and has to be run again.

Write the phone address into the board’s configuration CONFIG_SAMPLE_MIRROR_PHONE_IP (see Setting the phone address before building); once the board has started it connects directly to port 5555 of this address. On the first connection the phone pops up “Allow USB debugging?”, where you tick “Always allow” and then tap allow; the board waits up to 60 seconds (accept_timeout_ms of adb_connect(), passed in by scrcpy_start()).

Method two: wireless debugging (no address, no USB)

Requires Android 11 or above, with the phone and the board in the same WiFi.

1. Developer options → turn on “Wireless debugging”. The phone advertises the _adb-tls-connect._tcp service over mDNS.
2. After it starts, the board looks for this service; if it cannot find it, it shows a QR code on the screen (whose content is WIFI:T:ADB;S:mirror-xxxxxx;P:<password>;;, with the name and password randomised each time).
3. On the phone: Developer options → Wireless debugging → “Pair device with QR code”, and scan the QR code on the board’s screen.
4. Once pairing succeeds, the key the board saved is accepted by the phone, which then finds the service again and connects.

Leaving CONFIG_SAMPLE_MIRROR_PHONE_IP empty selects this method (the default). Pairing is needed only before the key is first accepted by the phone; if the key is changed or the pairing record is deleted on the phone, the connection returns -EACCES and the board shows the QR code again.

The scrcpy server

The scrcpy server is a jar (in fact a zip containing classes.dex) which the board pushes to /data/local/tmp/scrcpy-server.jar on the phone and then starts with app_process. The version must match the one configured on the board: CONFIG_SAMPLE_MIRROR_SERVER_VERSION defaults to 3.3.1, and when it starts the server compares the version number in the command line and exits if it does not match (the board prints the server’s output as server: …).

Download version 3.3.1 on the computer, rename it to scrcpy-server.jar and put it in the root directory of the TF card:

curl -L -o scrcpy-server.jar \
  https://github.com/Genymobile/scrcpy/releases/download/v3.3.1/scrcpy-server-v3.3.1
sha256sum scrcpy-server.jar

The file size is 90788 bytes and the SHA-256 is a0f70b20aa4998fbf658c94118cd6c8dab6abbb0647a3bdab344d70bc1ebcbb8; take the checksum published on the scrcpy release page as authoritative.

There is no need for a manual adb push: on every connection adb_push_file() first queries the size of this file on the phone with the STAT of the sync service and skips the push if it matches the file size on the card, pushing only when it differs (only the size is compared, not the content; swapping in another version of the same size will not be re-pushed, so delete the old file on the phone first). If the file is not on the card, fs_stat() fails and the screen shows cannot copy the server.

To change version: change both the jar on the card and CONFIG_SAMPLE_MIRROR_SERVER_VERSION. The server’s control-message format changes with the version; the message layout in scrcpy.c corresponds to 3.x, and moving to another major version requires checking it against scrcpy’s doc/develop.md.

Configuring WiFi

For the WiFi driver, firmware loading and the net_mgmt interface see AIC8800 WIFI. The parts this example uses:

• CONFIG_AIC8800=y enables the driver; the firmware is compiled into the image and does not have to be on the card.
• STA mode only; 2.4 GHz and 5 GHz, WPA2-PSK and open networks are supported; WPA3 is not supported.
• The board gets its address with DHCPv4; IPv6 is not supported (CONFIG_NET_IPV6=n).

How the example obtains the network name and password, trying in turn:

1. /SD:/wifi.cfg on the TF card: two lines of text, the first the name and the second the password, stored in plaintext.
2. CONFIG_SAMPLE_MIRROR_WIFI_SSID and CONFIG_SAMPLE_MIRROR_WIFI_PSK given at build time (used only when there is no saved network on the card).
3. If there is neither, or the connection fails: the screen shows the WiFi settings form — the “Scan” button scans, the dropdown selects a network (the “other” entry at the end of the list allows the name to be typed in manually), the password is entered with the on-screen keyboard, and connect is tapped. Once connected it is written back to wifi.cfg.

wifi.cfg is written only after a successful connection and is used directly on the next start-up. While mirroring, tap the gear in the top right corner, and “Change WiFi network” in the menu switches networks.

wifi_join() waits up to 30 seconds for the connection result and up to another 30 seconds for a DHCP address; in main() only a failure of wifi_setup(false) (no WiFi interface in the driver) shows no WiFi and exits, while a failure to reach the network keeps returning to the form.

Note

When joining a network the AIC8800 driver prints the SSID and password in plaintext on the serial port in its aic8800 log (Connect Wi-Fi: …, SET_NETWORK 0 psk "…"). Blank out these lines before pasting the serial log to anyone. The log pasted in this document has already had them replaced with the <SSID> and <PSK> placeholders.

Building

The component and the WiFi driver are both Zephyr modules under zephyr-components. The example’s CMakeLists.txt adds them to ZEPHYR_EXTRA_MODULES itself:

# the screen mirror module is two directories up, the WiFi module is a sibling
list(APPEND ZEPHYR_EXTRA_MODULES ${CMAKE_CURRENT_SOURCE_DIR}/../..
     ${CMAKE_CURRENT_SOURCE_DIR}/../../../aic8800)

So the module paths do not have to be given on the command line. Run this in the workspace:

. ~/f101-zephyr/env.sh
cd ~/f101-zephyr
west build -b yuzukineko -d build/android-mirror zephyr-components/android-screen-mirror/samples/mirror_player

The artifact is build/android-mirror/zephyr/zephyr.bin, 7567584 bytes (about 7.2 MiB, including the AIC8800 firmware), linked at 0x40000000, using 7567584 bytes of RAM, 45.28% of 16320 KB.

The example’s prj.conf sets CONFIG_MINIMAL_LIBC=y: the compat/ headers of the AIC8800 driver are written for the minimal C library, and with the board’s default picolibc they clash over the declaration of getchar, see AIC8800 WIFI. Your own application must set this too when it uses the driver.

Setting the phone address before building

When using the adb tcpip method, write the phone address into the example directory’s prj.conf (the string must be quoted):

CONFIG_SAMPLE_MIRROR_PHONE_IP="192.168.1.23"

The initial WiFi can be given the same way: CONFIG_SAMPLE_MIRROR_WIFI_SSID="…" and CONFIG_SAMPLE_MIRROR_WIFI_PSK="…", saving you from typing them on the screen. After changing prj.conf, switch to a new build directory or add -p to west build, otherwise the old values in the CMake cache take effect.

Running

For the download procedure see Building and running; the console is UART1 (PB00/PB01, 115200 8N1). The image is 7.2 MiB; use method one while debugging:

xfel ddr f101-s3
xfel write 0x40000000 build/android-mirror/zephyr/zephyr.bin
xfel exec 0x40000000

Caution

The board has only one USB-C port, which is both the xfel download port and the UF2 drive port. Download first, then connect other devices.

Downloading and starting

Put scrcpy-server.jar in the root directory of the TF card, insert it into the board, and power on or download.

The serial port first prints the boot banner, then the display driver prints 1024x768 @ 60 Hz, GT967 reports its firmware version, the configuration updates to 1024x768, 5 point(s), and the touchscreen and display are ready.

Connecting to WiFi

The status box in the top left corner of the screen shows joining the WiFi. When there is already a saved wifi.cfg on the TF card, the board reads it and connects directly without going through the settings form; on first use, or when it cannot connect, the WiFi settings form appears on the screen, where you select a network, enter the password and connect.

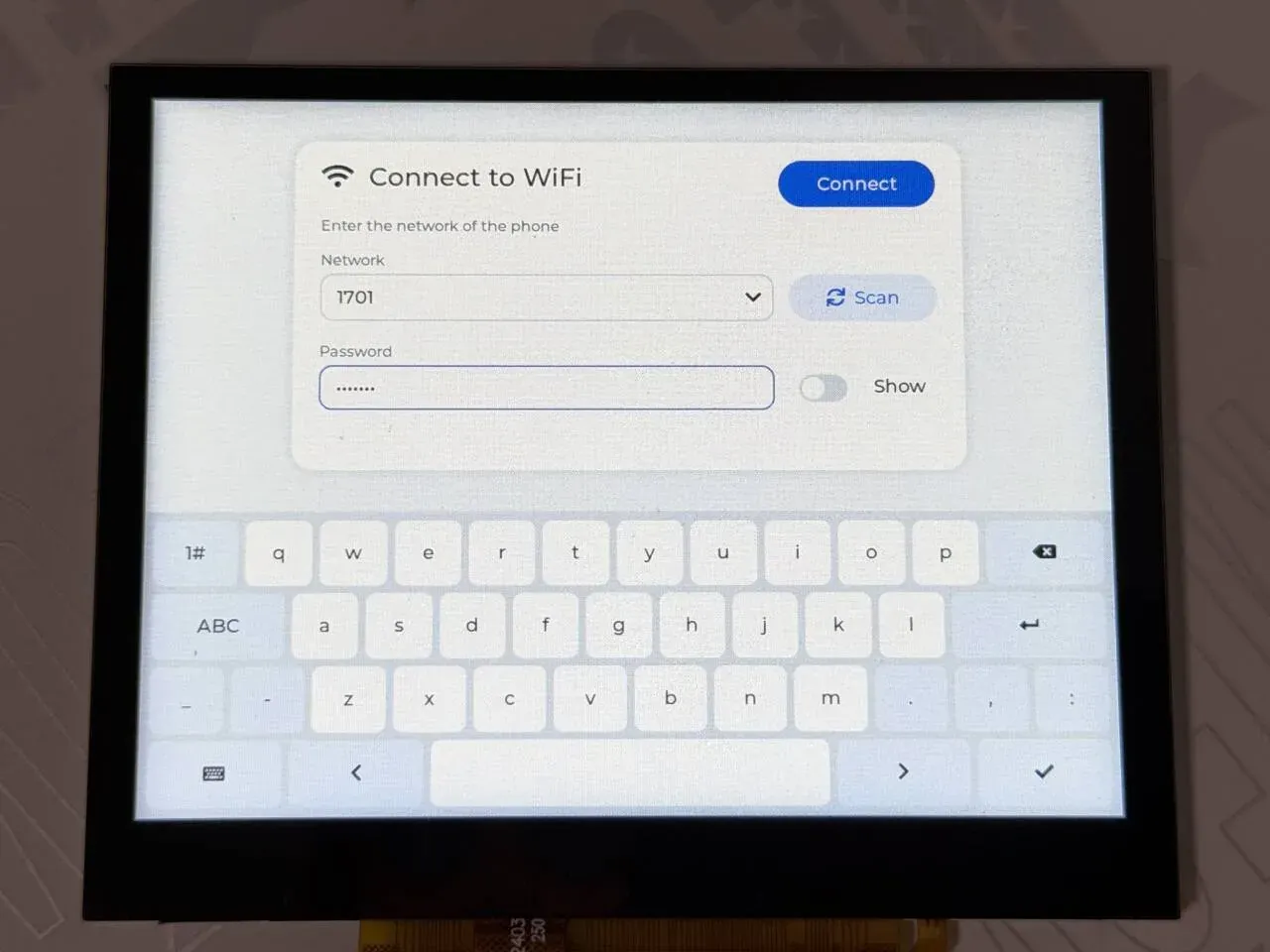

The picture above is the WiFi settings form: the network is chosen from the dropdown (Scan rescans), the Show switch to the right of the password field toggles plaintext display, and the on-screen keyboard is below.

The serial port prints wifi: connecting to <SSID>. AIC8800 completes SDIO enumeration (sdio card up: 2 functions), chip identification (chip_id=c3) and firmware download (### Upload firmware, Start app); after wpa_supplicant starts it prints wifi: connect ok (0), and DHCP gives wifi: address 192.168.1.55. For driver details see AIC8800 WIFI. The driver printed the SSID and password in plaintext on the serial port; the log below has had them replaced with <SSID> and <PSK>. The complete log:

*** Booting Zephyr OS build 55f8a211e870 ***
[00:00:00.494,000] <inf> display_sunxi: 1024x768 @ 60 Hz, fb 0x40287840, video plane 0
[00:00:00.565,000] <inf> gt967: GT967 firmware 0x1040, 1024x768
[00:00:00.570,000] <inf> gt967: configuration 0x63: 1024 x 768, up to 1 point(s), module switch 0x04
[00:00:00.576,000] <inf> gt967: configuration updated: 1024x768, 5 point(s)
wifi: connecting to <SSID>
[00:00:01.663,000] <inf> aic8800: aic_wifi_init, mode=0
[00:00:01.663,000] <inf> aic8800: release version:aic 2025-06-10 12:08:28 +0800 b6a954b6
[00:00:01.663,000] <inf> aic8800: aic_wifi_open: 0
[00:00:01.663,000] <inf> aic8800: aicwf chipid: USE AIC8800D80
[00:00:02.064,000] <inf> aic8800: aic_wifi_reset_power done
[00:00:03.078,000] <inf> sd: Card does not support CMD8, assuming legacy card
[00:00:03.089,000] <inf> aic8800: sdio card up: 2 functions
[00:00:03.089,000] <inf> aic8800: sdio aggr_buf:0x40847c10, aggr_buf_align:0x40847c40
[00:00:03.089,000] <inf> aic8800: sdio_host_init:enable func1 ok!
[00:00:03.089,000] <inf> aic8800: sdio_host_init:aic_sdio_set_block_size 512
[00:00:03.089,000] <inf> aic8800: sdio_host_init:sdio_set_block_size 512
[00:00:03.089,000] <inf> aic8800: aicwf_sdio_reg_init
[00:00:03.089,000] <inf> aic8800: sdio_host_init:host_int ok
[00:00:03.089,000] <inf> aic8800: fhost_rx_init
[00:00:03.089,000] <inf> aic8800: fhost_rx_task
[00:00:03.090,000] <inf> aic8800: rwnx_fdrv_init enter
[00:00:03.090,000] <inf> aic8800: chipid 3
[00:00:03.090,000] <inf> aic8800: 40500000=73c38820
[00:00:03.091,000] <inf> aic8800: flag:20=88200002
[00:00:03.091,000] <inf> aic8800: chip_id=c3, chip_sub_id=2
[00:00:03.091,000] <inf> aic8800: ### Upload firmware, @ = 120000
[00:00:03.091,000] <inf> aic8800: ### dst=0x4019ebf8, size=336848
[00:00:03.261,000] <inf> aic8800: rd_version_val=06090101
[00:00:03.265,000] <inf> aic8800: Read FW mem: 00120000
[00:00:03.266,000] <inf> aic8800: cfm: [00120000] = 001a0000
[00:00:03.266,000] <inf> aic8800: Start app: 00120000
[00:00:03.289,000] <inf> aic8800: get_userconfig_xtal_cap:enable       :1
[00:00:03.289,000] <inf> aic8800: get_userconfig_xtal_cap:xtal_cap     :24
[00:00:03.289,000] <inf> aic8800: get_userconfig_xtal_cap:xtal_cap_fine:31
[00:00:04.282,000] <inf> aic8800: rwnx_fdrv_init exit
[00:00:04.282,000] <inf> aic8800: aic_cli_cmd_init
[00:00:04.282,000] <inf> aic8800: cli_cmd_task
[00:00:04.282,000] <inf> aic8800: use default mac addr, read efuse
[00:00:04.282,000] <inf> aic8800: fhost_mac_addr cc:4e:6e:6c:47:9d
[00:00:04.282,000] <inf> aic8800: Connect Wi-Fi: Empty_SSID, Empty_Password
[00:00:04.282,000] <inf> aic8800: net_if_add wl
[00:00:04.282,000] <inf> aic8800: net_tx_buf_sema initial count:200
[00:00:04.284,000] <inf> aic8800: wifi open ok
[00:00:04.284,000] <inf> aic8800: aic_wifi_init ok
[00:00:04.284,000] <inf> aic8800: Connect Wi-Fi: <SSID>, <PSK>
[00:00:04.284,000] <inf> aic8800: fhost_wpa_create_network
[00:00:04.284,000] <inf> aic8800: fhost_wpa_start
[00:00:04.287,000] <inf> aic8800: target->sem 40880720
[00:00:04.287,000] <inf> aic8800: target.sem 0
[00:00:04.287,000] <inf> aic8800: WPA task started for interface {FVIF-0}
[00:00:04.287,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:ADD_NETWORK
[00:00:04.288,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:SET_NETWORK 0 ssid "<SSID>"
[00:00:04.289,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:SET_NETWORK 0 key_mgmt WPA-PSK
[00:00:04.289,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:SET_NETWORK 0 psk "<PSK>"
[00:00:04.516,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:SET_NETWORK 0 ieee80211w 1
[00:00:04.516,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:SET filter_ssids 1
[00:00:04.517,000] <inf> aic8800: WPA network 0: created and configured
[00:00:04.517,000] <inf> aic8800: fhost_wpa_execute_cmd cmd:ENABLE_NETWORK 0
[00:00:04.518,000] <inf> aic8800:  fhost_cntrl_cfgrwnx_scan resp.status 0
wifi: connect ok (0)
[00:00:06.460,000] <inf> aic8800: WPA enter FHOST_WPA_STATE_CONNECTED
[00:00:06.461,000] <inf> aic8800: target->sem 40893b80
wifi: address 192.168.1.55

Connecting to the phone

Method one: the phone has already run adb tcpip 5555, and the status bar on the screen shows connecting to the phone, copying the server, starting the server and waiting for the first picture in turn. The first connection needs an allow tap on the phone.

Method two: after wireless debugging is turned on on the phone, the screen shows looking for the phone (turn on Wireless debugging) and connects once it is found; if it has never been paired, the QR code is shown, and you scan it as described above.

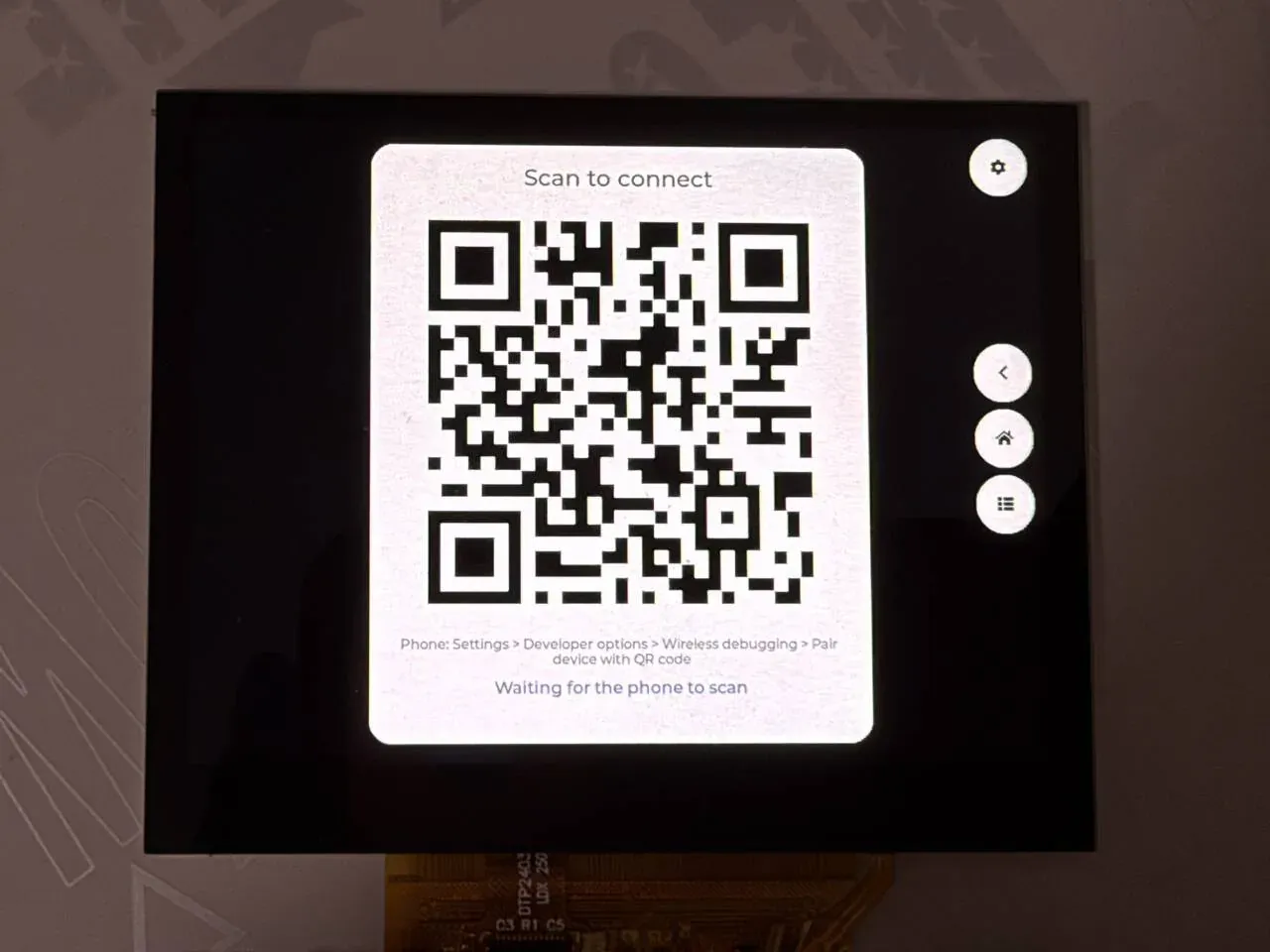

The picture above is the QR code shown when it has never been paired; the small line of text below it is the path to follow on the phone, and at the very bottom is Waiting for the phone to scan.

Operating the mirrored picture

Once the phone’s picture appears, tapping anywhere in the picture is the same as tapping the corresponding place on the phone. The column of three round keys on the right of the screen is back, home and recent tasks, and the top right corner is settings.

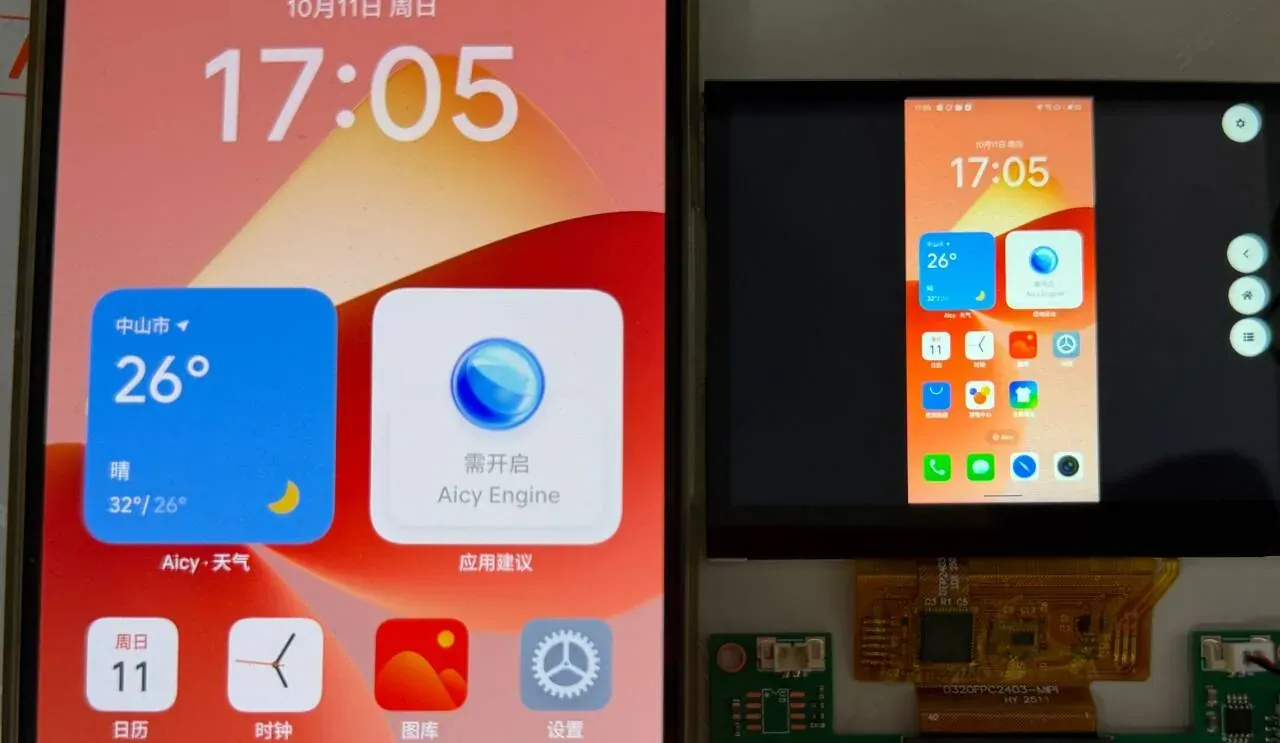

The phone is on the left and the board’s screen on the right: the phone is in portrait, and the picture is scaled proportionally and centred, with black bars on both sides. The column of round keys on the right is, from top to bottom, back, home and recent tasks, and the round key in the top right corner is settings.

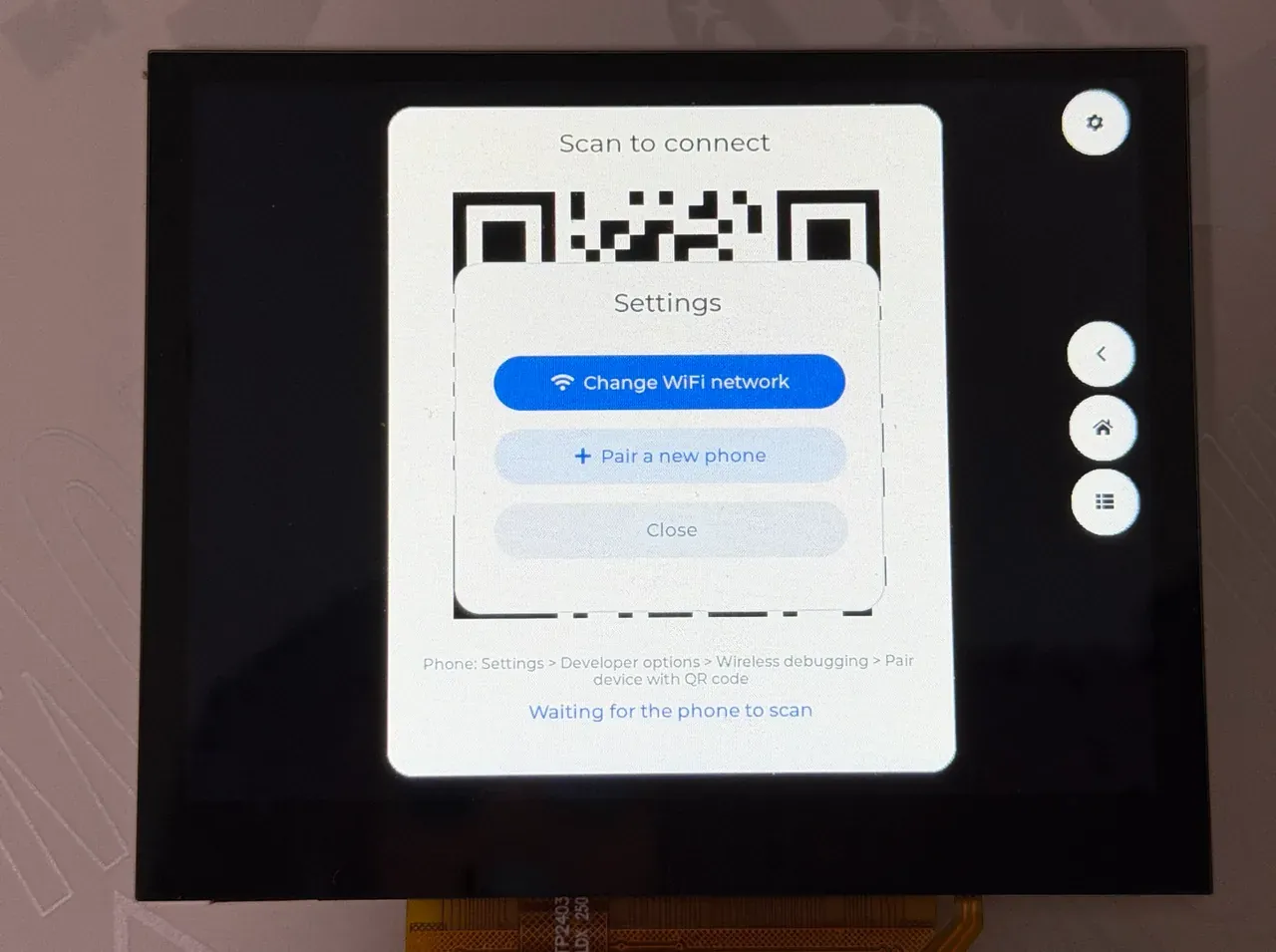

Tapping the settings key in the top right corner brings up this menu: Change WiFi network reopens the WiFi settings form, Pair a new phone pairs again, and Close closes the menu.

Status text on the screen

The text in the status bar comes from ui_set_status(); what main.c and scrcpy.c write is the original English:

Text	Meaning
joining the WiFi	connecting to WiFi
no SD card	fs_mount() still failed after 5 retries; the program ends here
no WiFi	no WiFi interface; the program ends
looking for the phone (turn on Wireless debugging)	looking for the _adb-tls-connect service
Waiting for the phone to scan	showing the QR code, waiting for the phone to scan it
Pairing...	the phone has scanned it and pairing is under way
connecting to the phone	connecting to adbd
key refused by the phone	the phone refused the key (-EACCES)
cannot connect to adb	connection or TLS failed
copying the server	pushing the server
cannot copy the server	push failed, usually because scrcpy-server.jar is not on the card
starting the server	starting the server
the server did not start	could not connect to the server’s socket within 15 seconds
waiting for the first picture	both streams are open, waiting for the first frame
connection lost, retrying	the stream dropped, retrying after 3 seconds

Features and where to change them

Feature	Location	How to change
Phone address, port, connection method	SAMPLE_MIRROR_PHONE_IP, SAMPLE_MIRROR_PHONE_PORT in Kconfig; connect_round() in main.c (lines 531–560)	Change the configuration; supporting both methods at once requires changing connect_round()
scrcpy parameters (resolution, frame rate, bit rate)	SAMPLE_MIRROR_MAX_SIZE, SAMPLE_MIRROR_MAX_FPS, SAMPLE_MIRROR_BIT_RATE in Kconfig; the command line is assembled at lines 84–90 of scrcpy.c	Change the configuration; to add other server parameters change that string
Frame-drop threshold	BACKLOG_DROP at line 35 of main.c	Change the macro
Maximum video packet length	PACKET_MAX at line 33 of main.c (1 MiB)	Change the macro; larger packets are dropped and print packet too large
Decoder buffer	stream_open() in main.c, .buffer_size = 512 * 1024	Change buffer_size
Navigation key positions and count	KEY_SIZE, KEY_GAP at lines 25–26 of ui.c, key_rect(); the key-value table is at line 603	Change the constants, or change key_codes[] to other Android key values
Touch mapping	picture_rect() (lines 584–597) and relay_main() (from line 608) in ui.c	See Touch mapping
Touch release hold time	RELEASE_HOLD_MS at line 28 of ui.c (50 ms)	Change the macro
Settings menu items	menu_build() in ui.c, lines 492–493	Change items[], and handle the new enum ui_action in the loop in main()
WiFi configuration file location	WIFI_CFG at line 153 of main.c	Change the macro

Configuration options

Component (android-screen-mirror/Kconfig)

Option	Default	Notes
CONFIG_MIRROR	n	Enables the component. Depends on NETWORKING, NET_TCP, FILE_SYSTEM, and selects mbed TLS RSA, PKCS#1 v1.5, SHA-1/256/512, HKDF, GCM and RING_BUFFER
CONFIG_MIRROR_ADB_MAX_PAYLOAD	65536	Maximum ADB packet the board accepts, range 4096–262144; one buffer each for sending and receiving is allocated at this size
CONFIG_MIRROR_ADB_RX_BUFFER	262144	Receive ring buffer per stream (bytes). Once it is full the receive thread waits for the reader to take data, and the TCP window tightens accordingly
CONFIG_MIRROR_ADB_TRACE	0	Set to 1 to print one packet-header line per ADB packet received

An application using the component must also set CONFIG_MBEDTLS_USER_CONFIG_FILE="mirror_mbedtls.h"; the header is in android-screen-mirror/include/ and is used to enable mbed TLS features such as PEM, X.509 generation and TLS key export.

Example (samples/mirror_player/Kconfig)

Option	Default	Notes
CONFIG_SAMPLE_MIRROR_WIFI_SSID	""	WiFi name used when there is no saved network on the card
CONFIG_SAMPLE_MIRROR_WIFI_PSK	""	The corresponding WPA2 password
CONFIG_SAMPLE_MIRROR_PHONE_IP	""	The phone’s IPv4 address. Empty: find and pair with the phone using wireless debugging; non-empty: connect to the ADB plaintext port of this address
CONFIG_SAMPLE_MIRROR_PHONE_PORT	5555	Port for the method just above
CONFIG_SAMPLE_MIRROR_KEY_FILE	"/SD:/adbkey"	ADB private key file, generated if it does not exist. The computer’s ~/.android/adbkey can be put here directly, so the phone treats it as the same computer and does not pop up again
CONFIG_SAMPLE_MIRROR_SERVER_FILE	"/SD:/scrcpy-server.jar"	The scrcpy server file on the card
CONFIG_SAMPLE_MIRROR_SERVER_VERSION	"3.3.1"	Server version, which must match the jar
CONFIG_SAMPLE_MIRROR_MAX_SIZE	1024	Maximum pixels on the long side of the picture; the server scales down proportionally
CONFIG_SAMPLE_MIRROR_MAX_FPS	30	Frame-rate ceiling
CONFIG_SAMPLE_MIRROR_BIT_RATE	4000000	Video bit rate (bits per second)

Screen-mirroring options in prj.conf

Option	Effect
CONFIG_MIRROR=y	Enables the component
CONFIG_MINIMAL_LIBC=y	The compat/ headers of the AIC8800 driver are written for the minimal C library and fail to compile under picolibc
CONFIG_AIC8800=y	Enables the WiFi driver
CONFIG_VDEC=y	Video engine, decodes H.264
CONFIG_DISPLAY=y	Display driver
CONFIG_DISPLAY_SUNXI_ARGB8888=y	ARGB interface plane, where the status bar, keys and QR code are drawn
CONFIG_LVGL=y	Interface library
CONFIG_LV_USE_QRCODE=y	Pairing QR code
CONFIG_LV_USE_KEYBOARD=y	On-screen keyboard of the WiFi form
CONFIG_LV_USE_TEXTAREA=y	Input field of the WiFi form
CONFIG_LV_USE_SWITCH=y	The “Show” switch in the WiFi form, toggling plaintext display of the password
CONFIG_SDHC=y	SD host controller
CONFIG_FAT_FILESYSTEM_ELM=y	FatFs, to read the server and read/write wifi.cfg and adbkey
CONFIG_FS_FATFS_EXFAT=y	Support for exFAT cards
CONFIG_FS_FATFS_LFN=y	Long file names
CONFIG_NET_TCP_MAX_RECV_WINDOW_SIZE=32768	TCP receive window 32 KB
CONFIG_NET_TCP_MAX_SEND_WINDOW_SIZE=32768	TCP send window 32 KB
CONFIG_NET_PKT_RX_COUNT=64	The video stream needs more packet buffers than the default (there are also NET_PKT_TX_COUNT, NET_BUF_RX_COUNT=256, NET_BUF_TX_COUNT=256)
CONFIG_NET_BUF_DATA_SIZE=1536	Data area of each network buffer
CONFIG_NET_IPV4_IGMP=y	Joining the mDNS multicast group
CONFIG_NET_CONTEXT_REUSEADDR=y, CONFIG_NET_CONTEXT_REUSEPORT=y	Port 5353 multiplexing for mDNS
CONFIG_MBEDTLS_TLS_VERSION_1_3=y	TLS 1.3 for wireless debugging
CONFIG_MBEDTLS_HEAP_SIZE=131072	Dedicated mbed TLS heap, needed to generate the RSA key and do the TLS handshake
CONFIG_TEST_RANDOM_GENERATOR=y	The SoC’s random-number generator has no driver yet, so a pseudo-random source is used. The ADB key, TLS and pairing all use it, and it must not be used in a product
CONFIG_HEAP_MEM_POOL_SIZE=262144	Kernel heap, from which the AIC8800 driver allocates; the ADB send/receive buffers and the 1 MiB video packet buffer use malloc()
CONFIG_COMMON_LIBC_MALLOC_ARENA_SIZE=-1	malloc() uses the remaining memory
CONFIG_MAIN_STACK_SIZE=16384	Main thread stack; the TLS handshake uses a lot of stack
CONFIG_SYSTEM_WORKQUEUE_STACK_SIZE=4096	WiFi scanning runs in the system work queue
CONFIG_NET_MGMT_EVENT_STACK_SIZE=4096	WiFi event thread stack
CONFIG_INPUT_THREAD_PRIORITY=4	Input thread priority, in boards/yuzukineko.conf
CONFIG_INPUT_GT967_MAX_TOUCH_POINTS=5	The touchscreen reports at most 5 points, in boards/yuzukineko.conf

Code structure

File	Contents
android-screen-mirror/src/adb.c	ADB client: connection and authentication, STLS upgrade, stream multiplexing, sync: file push
android-screen-mirror/src/adb_auth.c	ADB key: generate or read an RSA 2048 key (PEM), sign, export the ADB public-key format, generate a self-signed certificate
android-screen-mirror/src/tls_io.c	mbed TLS socket adaptation, TLS 1.3, no peer certificate verification
android-screen-mirror/src/pairing.c, ed25519_ops.c	Wireless debugging pairing: SPAKE2 (edwards25519) + HKDF + AES-128-GCM
android-screen-mirror/src/mdns.c	Minimal mDNS queries (PTR, SRV, A records)
android-screen-mirror/src/scrcpy.c	scrcpy client: push and start the server, read video packets, send touch and keys
android-screen-mirror/include/mirror_zephyr/*.h	Public interfaces
samples/mirror_player/src/main.c	WiFi, the session loop, decoding and display, finding the phone and pairing
samples/mirror_player/src/ui.c	LVGL interface (status, QR code, WiFi form, settings menu) and the touch relay

Threads:

Thread	Priority	Role
main	6	reads video packets, feeds the decoder, takes frames for display
adb_rx	5	one per ADB connection; receives packets and puts the data into the stream’s ring buffer
touch_relay	5	touch relay
ui	7	LVGL
input thread	4 (CONFIG_INPUT_THREAD_PRIORITY)	events from the touch driver; its priority is above the main thread’s so fingers are not lost while decoding

The scrcpy session

The main steps of scrcpy_start(); the command-line string is the key=value parameters of the scrcpy 3.x server:

  snprintk(sock, sizeof(sock), "localabstract:scrcpy_%08x", scid);
  snprintk(cmd, sizeof(cmd),
     "shell:CLASSPATH=%s app_process / com.genymobile.scrcpy.Server %s scid=%08x "
     "log_level=info video=true audio=false control=true tunnel_forward=true "
     "max_size=%u max_fps=%u video_bit_rate=%u video_codec=h264 "
     "send_device_meta=true send_frame_meta=true send_dummy_byte=true "
     "send_codec_meta=true clipboard_autosync=false",
     REMOTE_JAR, cfg->version, scid, cfg->max_size, cfg->max_fps, cfg->bit_rate);
  say(cfg, "starting the server");
  ret = adb_open(s->adb, cmd, shell_sink, NULL, &s->shell);
  if (ret != 0) {
    printk("scrcpy: cannot start the server: %d\n", ret);
    goto fail;
  }

  /* the server needs a moment before it listens */
  ret = -ECONNREFUSED;
  for (int i = 0; i < SOCKET_RETRIES && ret != 0; i++) {
    if (adb_is_closed(s->shell)) {
      ret = -ECONNRESET;
      break;
    }
    k_msleep(SOCKET_RETRY_MS);
    ret = adb_open(s->adb, sock, NULL, NULL, &s->video);
  }
  if (ret != 0) {
    printk("scrcpy: the server did not come up: %d\n", ret);
    say(cfg, "the server did not start");
    goto fail;
  }

A few notes:

• tunnel_forward=true: the server listens and the board connects through ADB (localabstract:scrcpy_xxxxxxxx), rather than the server connecting back. scid is a random 31-bit number, avoiding a conflict with other scrcpy sessions on the phone.
• audio=false: no audio is sent. control=true: the control stream is enabled. clipboard_autosync=false: the clipboard is not synchronised.
• send_dummy_byte, send_device_meta, send_codec_meta, send_frame_meta: the server first sends 1 byte, a 64-byte device name and 12 bytes of codec information (a 4-character codec name plus 4 bytes each for width and height), after which every packet has a 12-byte header (the top 2 bits are the config and keyframe flags, the remaining 62 bits are the pts in microseconds; the last 4 bytes are the length).
• The server takes time to start, so the video stream is retried up to 60 times at 250 ms intervals, 15 seconds in total.
• Messages from the server on the control stream (clipboard) are dropped directly (drop_sink).

Decoding and display

The session loop reads packets, feeds the decoder and takes frames:

while (true) {
    size_t len = PACKET_MAX, off = 0;
    unsigned int flags;
    int64_t pts;
    int ret = scrcpy_read_packet(&s, pkt, &len, &pts, &flags);

    if (ret == -EMSGSIZE) {
        printk("mirror: packet too large, skipped\n");
        continue;
    }
    if (ret != 0) {
        printk("mirror: stream ended: %d\n", ret);
        break;
    }
    bytes += len;

    if (flags & SCRCPY_PACKET_CONFIG) {
        /* a new picture size needs a new decoder */
        if (stream != NULL && (len != config_len || memcmp(config, pkt, len) != 0)) {
            stream_close();
        }
        config_len = MIN(len, sizeof(config));
        memcpy(config, pkt, config_len);
    }
    if (stream == NULL && stream_open() != 0) {
        printk("mirror: cannot open the decoder\n");
        break;
    }

    uint32_t c0 = k_cycle_get_32();

    while (off < len) {
        size_t used = 0;

        ret = vdec_stream_feed(vdec_dev, stream, pkt + off, len - off,
                       (flags & SCRCPY_PACKET_CONFIG) ? -1 : pts, &used);
        if (ret == 0) {
            off += used;
        } else if (ret == -EAGAIN) {
            drain(&s);
            k_msleep(1);
        } else {
            printk("mirror: feed error %d\n", ret);
            break;
        }
    }
    drain(&s);
    t_decode_us += (uint32_t)k_cyc_to_us_floor64(k_cycle_get_32() - c0);

A SCRCPY_PACKET_CONFIG packet is SPS/PPS; when its content changes (the resolution changed, for example because the phone was rotated) the old decode stream is closed and reopened. The display function drops frames when there is a backlog:

static void put_up(struct scrcpy *s, struct vdec_frame *f)
{
  struct display_sunxi_yuv yuv = {
    .y = f->plane[0],
    .uv = f->plane[1],
    .width = f->width,
    .height = f->height,
    .stride_y = f->stride[0],
    .stride_uv = f->stride[1],
    .bt709 = true,
    .nonblock = true,
  };

  if (scrcpy_video_backlog(s) > BACKLOG_DROP) {
    vdec_frame_release(vdec_dev, f);
    dropped_count++;

    return;
  }
  display_sunxi_show_yuv(disp, &yuv);
  ui_set_video_size(f->width, f->height);
  /* the picture before the last may still be scanned out */
  if (older.priv != NULL) {
    vdec_frame_release(vdec_dev, &older);
  }
  older = shown;
  shown = *f;
  shown_count++;
}

scrcpy_video_backlog() is the number of bytes not yet read from the video stream’s ring buffer. A backlog of more than 96 KB means decoding or display cannot keep up; that frame is not shown, trading a dropped frame for low latency.

Finding the phone and pairing

static void connect_round(uint8_t *pkt)
{
  char host[NET_IPV4_ADDR_LEN];
  struct mdns_service svc;
  int ret;

  if (strlen(CONFIG_SAMPLE_MIRROR_PHONE_IP) > 0U) {
    /* a fixed address: ADB over TCP (adb tcpip 5555) */
    run_session(pkt, CONFIG_SAMPLE_MIRROR_PHONE_IP, CONFIG_SAMPLE_MIRROR_PHONE_PORT,
          false);
    return;
  }
  ui_set_status("looking for the phone (turn on Wireless debugging)");
  if (mdns_find(SERVICE_CONNECT, NULL, &svc, 6000, ui_action_pending) != 0) {
    if (ui_action_pending()) {
      return;
    }
    /* nothing known to connect to: offer the code, the phone then pairs and shows up */
    printk("mirror: no wireless debugging service found, showing the pairing code\n");
    pair_with_phone();
    return;
  }
  zsock_inet_ntop(AF_INET, &svc.addr, host, sizeof(host));
  printk("mirror: %s at %s:%u\n", svc.instance, host, svc.port);
  ret = run_session(pkt, host, svc.port, true);
  if (ret == -EACCES && pair_with_phone()) {
    /* the connect port is new after a pairing */
    k_sleep(K_SECONDS(1));
  }
}

Protocol flow

Overview

flowchart TD
    A["main: mount the TF card<br/>wifi_setup"] --> B{"CONFIG_SAMPLE_MIRROR_PHONE_IP<br/>is it empty?"}
    B -->|"not empty"| C["adb_connect<br/>plain TCP + RSA authentication"]
    B -->|"empty"| D["mdns_find<br/>_adb-tls-connect._tcp<br/>up to 6 seconds"]
    D -->|"not found"| P["pair_with_phone<br/>show the QR code, up to 180 seconds"]
    P --> A2["back to the loop and search again"]
    D -->|"found"| E["adb_connect_tls<br/>STLS + TLS 1.3"]
    E -->|"-EACCES"| P
    C --> F["scrcpy_start<br/>push the server, start it, open the two streams"]
    E --> F
    F --> G["read H.264 packets → decode → display<br/>the touch relay thread runs at the same time"]
    G -->|"stream ends"| H["show connection lost<br/>retry after 3 seconds"]
    H --> A2

Sequence: method one, adb tcpip

sequenceDiagram
    participant B as board
    participant A as phone adbd
    participant S as scrcpy server
    B->>A: TCP connect 5555
    B->>A: CNXN host::
    A-->>B: AUTH TOKEN (20-byte random number)
    B->>A: AUTH SIGNATURE (signed with adbkey)
    A-->>B: AUTH TOKEN (the phone does not know this key)
    B->>A: AUTH RSAPUBLICKEY
    Note over A: "Allow USB debugging?" pops up, the user taps allow
    A-->>B: CNXN
    B->>A: OPEN sync:
    B->>A: STAT /data/local/tmp/scrcpy-server.jar
    A-->>B: file size
    B->>A: SEND, DATA..., DONE (pushed only when the size differs)
    A-->>B: OKAY
    B->>A: OPEN shell:CLASSPATH=... app_process / com.genymobile.scrcpy.Server 3.3.1 ...
    A->>S: start the process
    S->>S: listen on the abstract socket scrcpy_xxxxxxxx
    loop every 250 ms, up to 60 times
        B->>A: OPEN localabstract:scrcpy_xxxxxxxx
    end
    A-->>B: OKAY (video stream)
    B->>A: OPEN localabstract:scrcpy_xxxxxxxx
    A-->>B: OKAY (control stream)
    S-->>B: 1 dummy byte, 64-byte device name, 12-byte codec info
    loop each picture
        S-->>B: 12-byte packet header + H.264 data
    end
    B->>S: touch / key messages (control stream)

Sequence: method two, wireless debugging

sequenceDiagram
    participant B as board
    participant M as local mDNS
    participant A as phone adbd
    B->>M: query _adb-tls-connect._tcp.local
    alt the phone has wireless debugging on and is already paired
        M-->>B: instance name, port, address
        B->>A: TCP connect
        B->>A: CNXN
        A-->>B: STLS
        B->>A: STLS
        B->>A: TLS 1.3 handshake (the client certificate is generated from adbkey)
        A-->>B: CNXN
        Note over B,A: from here it is the same as method one, only the packets are inside TLS
    else not found
        Note over B: the screen shows the QR code, whose content is WIFI:T:ADB plus the name mirror-xxxxxx and a random password
        Note over A: the phone scans it and registers as mirror-xxxxxx on the pairing port
        B->>M: query the instance mirror-xxxxxx of _adb-tls-pairing._tcp.local
        M-->>B: pairing port, address
        B->>A: TLS 1.3 to the pairing port
        B->>A: SPAKE2 message (the password is the P from the QR code, plus the TLS exporter value)
        A-->>B: SPAKE2 message
        B->>A: PeerInfo encrypted with AES-128-GCM (the ADB public key)
        A-->>B: PeerInfo
        Note over B: pairing done, wait 1 second, then take the "already paired" branch above again
    end

The ADB packet header is 24 bytes: command, arg0, arg1, length, checksum, command complement. adb.c implements CNXN, AUTH, STLS, OPEN, OKAY, WRTE and CLSE. One connection has at most 4 streams at once (MAX_STREAMS): one each for shell, video and control, and the sync stream used while pushing the server is the fourth, so it must be closed once the push is done.

Data flow

flowchart TB
    subgraph PH["phone"]
        FB["screen"] --> ENC["MediaCodec H.264"] --> SRV["scrcpy-server"]
        INJ["input injection"]
    end
    SRV -->|"video packets: 8-byte pts+flags, 4-byte length, Annex B data"| ADBD["adbd"]
    ADBD -->|"WiFi / TCP"| NET["Zephyr network stack<br/>32 KB receive window"]
    NET --> RX["adb_rx thread<br/>splits ADB packets"]
    RX -->|"ring_buf<br/>CONFIG_MIRROR_ADB_RX_BUFFER = 256 KB"| MAIN["main thread<br/>scrcpy_read_packet"]
    MAIN -->|"vdec_stream_feed"| VE["video engine"]
    VE -->|"NV12"| PUT["put_up<br/>drops a frame when the backlog exceeds 96 KB"]
    PUT -->|"display_sunxi_show_yuv"| LCD["video plane, 1024×768"]
    GT["GT967"] -->|"input events"| CB["touch_event<br/>fingers[5]"]
    CB --> REL["touch_relay thread<br/>8 ms polling"]
    REL -->|"scrcpy_send_touch / scrcpy_send_key"| W["adb_write control stream"]
    W --> ADBD
    ADBD --> INJ

Touch mapping

The touchscreen is the GT967 and the board’s resolution is 1024×768. Input events are recorded by slot into fingers[] in touch_event() (at most 5 slots), waking the touch_relay thread; the thread polls every 8 ms while a finger is down and sleeps until the next event when there is none.

The display driver scales the phone’s picture proportionally and centres it in the panel, and picture_rect() computes the picture’s position on the panel with the same algorithm, so that touch coordinates can be converted back to phone-picture coordinates:

/* the same fit as the display driver: the largest size inside the panel with the aspect kept */
static void picture_rect(struct geom *g, uint16_t vw, uint16_t vh)
{
  if ((uint64_t)g->panel_w * vh <= (uint64_t)g->panel_h * vw) {
    g->w = g->panel_w;
    g->h = (uint64_t)vh * g->panel_w / vw;
  } else {
    g->h = g->panel_h;
    g->w = (uint64_t)vw * g->panel_h / vh;
  }
  g->w &= ~1;
  g->h &= ~1;
  g->x = (g->panel_w - g->w) / 2;
  g->y = (g->panel_h - g->h) / 2;
}

When a finger lands (the OWNER_NONE state):

case OWNER_NONE:
    if (down && !menu_open) {
        int k = key_hit(&g, fx, fy);

        if (k >= 0) {
            owner[i] = OWNER_KEY;
            key_of[i] = k;
            if (k < NKEYS) {
                keys_pressed |= BIT(k);
                scrcpy_send_key(s, true, key_codes[k]);
            }
        } else if (fx >= g.x && fx < g.x + g.w && fy >= g.y &&
               fy < g.y + g.h) {
            owner[i] = OWNER_TOUCH;
            sent_x[i] = (fx - g.x) * vw / g.w;
            sent_y[i] = (fy - g.y) * vh / g.h;
            ev[n++] = (struct scrcpy_touch){
                SCRCPY_TOUCH_DOWN, i, sent_x[i], sent_y[i]};
        }
    }
    break;

Rules:

• A touch landing on the three round keys on the right or the gear in the top right corner: this finger counts as a “key” and is not sent to the phone as a touch. The round keys call scrcpy_send_key(), sending down on press and up on release; the gear is handled by LVGL.
• A touch landing inside the picture: this finger counts as a “touch” and the coordinates are converted to phone-picture pixels, (fx - g.x) * vw / g.w, where vw and vh are the width and height of the current video frame. A later change of position sends MOVE and a release sends UP.
• A touch landing outside the picture (the black bars on both sides of a portrait phone, for example): ignored.
• While the settings menu is open (menu_open), no touch is sent to the phone.
• A release counts only after 50 ms with no reported point (RELEASE_HOLD_MS), because the touch controller sometimes misses a frame while the finger is not actually lifted.
• One slot corresponds to one scrcpy touch pointer ID (i), multi-touch is at most 5 points, and all events in one loop are combined into a single adb_write().

The message sent to the phone is the scrcpy control protocol’s INJECT_TOUCH_EVENT, 32 bytes, all big-endian:

int scrcpy_send_touch(struct scrcpy *s, const struct scrcpy_touch *t, unsigned int count,
          uint16_t w, uint16_t h)
{
  uint8_t msg[5 * 32];
  uint8_t *p = msg;

  count = MIN(count, 5U);
  for (unsigned int i = 0; i < count; i++) {
    p[0] = CTRL_INJECT_TOUCH;
    p[1] = t[i].action;
    sys_put_be64(t[i].id, p + 2);
    sys_put_be32(t[i].x, p + 10);
    sys_put_be32(t[i].y, p + 14);
    sys_put_be16(w, p + 18);
    sys_put_be16(h, p + 20);
    sys_put_be16(t[i].action == SCRCPY_TOUCH_UP ? 0 : 0xffff, p + 22);
    sys_put_be32(0, p + 24);  /* action button */
    sys_put_be32(0, p + 28);  /* buttons */
    p += 32;
  }

  return adb_write(s->control, msg, p - msg);
}

Offset	Length	Contents
0	1	message type 2 (CTRL_INJECT_TOUCH)
1	1	action: 0 down, 1 up, 2 move
2	8	pointer ID
10	4	x, in phone-picture pixels
14	4	y
18	2	picture width (tells the server what picture size this coordinate is based on)
20	2	picture height
22	2	pressure: 0 for up, 0xffff otherwise
24	4	action button, fixed 0
28	4	buttons, fixed 0

Keys are INJECT_KEYCODE (type 0, 14 bytes): action 0/1 means press/release, followed by the Android key value, a repeat count of 0 and a meta state of 0. The example uses three key values:

Round key	Key value	Macro
left (back)	4	SCRCPY_KEY_BACK
middle (home)	3	SCRCPY_KEY_HOME
right (recent tasks)	187	SCRCPY_KEY_APP_SWITCH

Scope

Latency

The end-to-end latency (from a change on the phone to a change on the board’s picture) is made up of these parts:

Part	Notes
phone encoding	the encoding latency of MediaCodec on the phone, which varies with the phone and the encoder
WiFi and TCP	the LAN round-trip time; the sender piles up data when the network is poor
board’s receive buffer	a 256 KB ring buffer, but put_up() drops frames when the backlog exceeds 96 KB, which limits the queue length
decoding	the video engine; main.c prints the cumulative decode time every 5 seconds
display	submitted asynchronously to the video plane (.nonblock = true), waiting for the next refresh
touch return	8 ms polling + one small TCP packet + injection on the phone

At the default bit rate of 4 Mbit/s (about 500000 bytes per second), a backlog of 96 KB (98304 bytes) corresponds to about 0.2 seconds of data; this is the upper bound on the queueing delay, not a measured value.

The picture is not audio/video synchronised: decoded frames are submitted immediately, without looking at the pts.

Unsupported features

Item	Situation
sound	not supported; the server is started with audio=false
clipboard	not supported; neither direction is synchronised
keyboard input	sending keypresses from the board side to the phone is not supported; entering text requires tapping the input method on the phone’s screen
navigation keys	only back, home and recent tasks; there is no power key or volume key
scroll wheel, mouse	not supported; touch only
number of touch points	at most 5 (SLOTS), sending at most 5 events at once
pressure, touch area	not supported; pressure is only “down” (0xffff) and “up” (0)
screen orientation	after the phone rotates the server sends a new SPS/PPS; the example reopens the decode stream and converts touches with the new size
multiple phones	not supported; one phone at a time, with MAX_STREAMS of 4
video codec	only H.264 is requested (video_codec=h264), decoded by the video engine
WiFi	STA only, no WPA3; if the router has client isolation enabled it cannot connect to the phone
phone certificate	not verified, for the reason in “No certificate verification” below
random numbers	from a pseudo-random source, and cannot be replaced with a hardware random number, for the reason in “Random numbers” below
key storage	adbkey is stored on the card as plaintext PEM, and wifi.cfg is plaintext too
version	the server and client versions must match; the message layout in scrcpy.c corresponds to scrcpy 3.x
phone reboot	the port 5555 of the adb tcpip method disappears after a phone reboot and has to be run again

No certificate verification

tls_io.c sets mbed TLS to MBEDTLS_SSL_VERIFY_NONE and does not check the certificate the phone presents. This is dictated by the ADB protocol: adbd and the pairing service use a self-signed certificate generated by the phone itself, issued by no CA, and there is no fingerprint the board could have in advance; the direction of ADB authentication is the phone recognising the client: the phone verifies the client certificate the board presents against the client key it recorded at pairing time. The board has no way to recognise the phone. The protection during pairing rests on the one-time password in the QR code (SPAKE2); someone without this password cannot complete pairing.

To verify it, remember the phone certificate’s fingerprint from the first connection in tls_io.c and compare against it afterwards (similar to SSH’s trust on first use); the example does not do this check.

Random numbers

The random numbers used by the ADB RSA key, the TLS handshake and pairing all go through adb_rng(), which calls sys_rand_get(). On this board its source is CONFIG_TEST_RANDOM_GENERATOR=y, a pseudo-random generator for testing whose output is predictable.

The F101 SoC has a hardware random-number generator (TRNG) that the example does not use: Zephyr has no Allwinner entropy driver, and the devicetree has no TRNG node. When you need it, add an entropy driver and select CONFIG_ENTROPY_GENERATOR, remove CONFIG_TEST_RANDOM_GENERATOR, and the application code does not change. Until then, do not use the generated ADB private key as a secure key.

Troubleshooting

Symptom	Cause and handling
no SD card	the card is not seated properly, or is not FAT/exFAT
stuck on the WiFi form	the name or password is wrong, or the router is WPA3 only; the driver does not support WPA3
the QR code appears right after looking for the phone	wireless debugging is not on on the phone, or the router does not forward mDNS, or client isolation is enabled. Switch to the adb tcpip method and set CONFIG_SAMPLE_MIRROR_PHONE_IP
key refused by the phone	there is no pairing record for this key on the phone. For method one tap allow in the popup on the phone; for method two scan the code again to pair
cannot connect to adb	wrong address or port, adb tcpip has not been run on the phone, or the phone and the board are not on the same network
cannot copy the server	scrcpy-server.jar is not on the card, or the file name is wrong
the server did not start	the server failed to start; look at the server: … output on the serial port; a common cause is the server version not matching CONFIG_SAMPLE_MIRROR_SERVER_VERSION
picture but no tapping	some vendors require “USB debugging (Security settings)” to be turned on
stuttering picture, many dropped frames	lower CONFIG_SAMPLE_MIRROR_MAX_SIZE or CONFIG_SAMPLE_MIRROR_BIT_RATE, switch to a network with a better signal, use 5 GHz
mirror: cannot open the decoder	the video engine cannot open a decode stream; close other programs using the video engine
