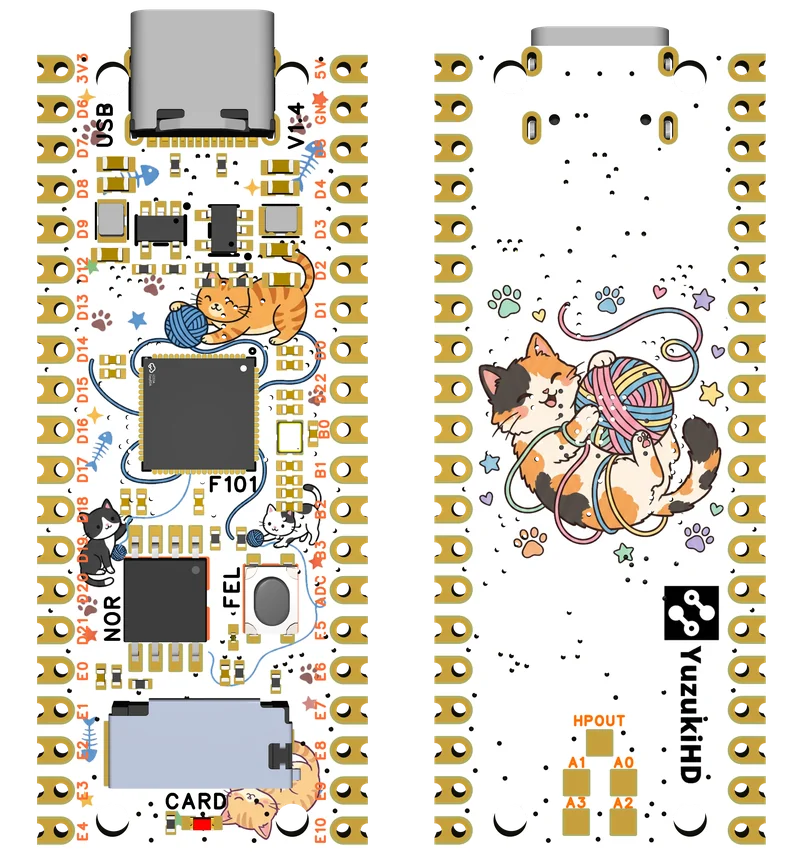

YuzukiNeko Pico Development Board

YuzukiNeko is a development board based on the Allwinner F101 series SoC, in the Raspberry Pi Pico 2 × 20 pin form factor. It carries 16 MiB of PSRAM (F101S3; the 32 MiB configuration of V1.5 uses F101S4) and 16 MiB of NOR Flash with XIP (execute-in-place) support, and suits RISC-V graphics, display, audio and general-purpose I/O projects. The hardware design is released under CC0 1.0.

What this documentation covers

What you want to do	Where to go
Power up for the first time and get the board running	Quickstart
Look up what a given pin can do	Pinout, Pin multiplexing
Wire up UART / I²C / SPI / CAN / PWM	Common peripheral pin groups
Work out whether your board is V1.3 / V1.4 / V1.5	Errata and revision differences
Enter download mode and install xfel / rfel	FEL download mode and tools
Flash ready-made firmware (RustSBI + Asterinas, Linux + Buildroot)	RustSBI + Asterinas, Prebuilt Linux images
Use the base board for display, Wi-Fi, CAN and audio	YuzukiCube-M base board
Write programs	Zephyr development, Linux development, RustSBI + Asterinas
Print an enclosure	3D-printed enclosure

Board specifications

Item	Specification
SoC	F101S3, XuanTie C907 RISC-V CPU (rv32imacfdv, with 64-bit support), QFN68 (7 mm × 7 mm)
Cache	32 KB I-cache + 16 KB D-cache
Memory	SiP 16-bit PSRAM, up to 16 MiB (16 MiB on this board; V1.5 targets the 32 MiB configuration)
Storage	16 MiB external NOR Flash with XIP support
Expansion	Pico-style 2 × 20 pin header
USB	USB-C connector; the SoC provides one USB 2.0 DRD controller
Other	microSD card socket and a button labelled FEL
Open-source license	CC0 1.0 (hardware design files)

Caution

The onboard NOR Flash is a system resource: it holds the bootloader and the firmware. Erasing and writing it carelessly will stop the board from booting from Flash, so always back it up first.

SoC capabilities

Block	Capability
Image decoding	JPEG up to 16384 × 16384; PNG up to 2048 × 2048
Image/video encoding	JPEG/MJPEG up to 720p@30 fps; maximum resolution 8192 × 8192
Display processing	de-interlace up to 720p@60 fps; G2D rotation and mixing accelerator
Video output	RGB888 up to 1280 × 720@60 fps; single-link LVDS up to 1366 × 768@60 fps; 4-lane MIPI DSI up to 1280 × 800@60 fps
Audio	One DAC (DACOUT), I2S/PCM, OWA OUT
Security	512-bit eFuse
Connectivity and peripherals	USB 2.0 DRD × 1, SDIO 2.0, SPI × 2, UART × 6, TWI × 3, CAN × 2, PWM, IR_RX, GPADC, TPADC

Tip

The table above is the SoC’s capability ceiling; it does not mean that every item is brought out on the development board or has ready-made software support. For what is brought out and how well each software option supports it, see Pinout and the documentation for each software option (Zephyr, Linux).

Related projects

• Development board repository: https://github.com/YuzukiHD/YuzukiNeko
• SyterKit (bootloader): https://github.com/YuzukiHD/SyterKit
• xfel: https://github.com/xboot/xfel, rfel: https://github.com/rustsbi/allwinner-hal/tree/main/rfel
