Doom - the Doom game

Running Doom on the board: the game engine is doomgeneric (GPL-2.0), and the platform layer, file access and sound mixing come from zephyr-components/doom. The example is samples/doom_player: it reads the WAD file from the TF card, the 320×200 picture goes to the display video plane and is scaled to the whole screen, sound effects come out of the on-chip codec, and a set of semi-transparent on-screen buttons is drawn with LVGL and operated from the touchscreen.

flowchart TB
    SD["TF card<br/>doom1.wad / doom.cfg / save files"] -->|"fs_read / fs_write"| ENG["doomgeneric engine<br/>doom_libc.c turns fopen into Zephyr fs"]
    TOUCH["touchscreen GT967"] --> PAD["pad.c<br/>LVGL buttons + hit test"]
    PAD -->|"doom_key()"| KQ["key queue<br/>64 entries"]
    PAD -->|"LVGL"| ARGB["ARGB plane<br/>semi-transparent buttons"]
    KQ -->|"DG_GetKey"| ENG
    ENG -->|"sound effects"| MIX["doom_sound.c<br/>8-channel mixing"]
    ENG -->|"8-bit palette picture"| DRAW["DG_DrawFrame<br/>to RGB565 → video.c"]
    MIX -->|"doom_audio_read"| AUD["audio.c<br/>i2s_write → on-chip codec"]
    DRAW -->|"display_sunxi_show_rgb"| PLANE["video plane<br/>scaled to the whole screen"]

Before you start, complete Setting up the development environment and Getting the Zephyr source.

Preparing the game data (WAD)

The game data lives in WAD files, which are not in the repository and you must supply yourself.

Source	Notes
doom1.wad	id Software’s shareware data, episode one. Obtain it yourself from a reliable source
doom.wad, doom2.wad	Data for the commercial game, from a copy you bought yourself
Freedoom	Free data made by the community, under a modified BSD license and freely distributable; download freedoom1.wad or freedoom2.wad from freedoom.github.io

How to put it on the TF card

The example reads the card with FatFs, and the format requirements are the same as for the MP4 player (FAT or exFAT, long file names supported). Copy the WAD to the root directory of the TF card:

F:\
├── doom1.wad        # this file name is read by default
├── doom.cfg         # generated by the engine after it runs: keys, volume and other settings
└── .savegame\       # generated after it runs: save files

main.c first mounts the TF card at /SD:, then picks the WAD:

static FATFS fat_fs;
static struct fs_mount_t mp = {
  .type = FS_FATFS,
  .fs_data = &fat_fs,
  .mnt_point = "/SD:",
};

static char wad_path[128];

/* the configured WAD, or else the first .wad file in the root of the card */
static int pick_wad(void)
{
  struct fs_dirent ent;
  struct fs_dir_t dir;

  strncpy(wad_path, CONFIG_SAMPLE_DOOM_WAD, sizeof(wad_path) - 1);
  if (fs_stat(wad_path, &ent) == 0) {
    return 0;
  }
  fs_dir_t_init(&dir);
  if (fs_opendir(&dir, "/SD:") != 0) {
    return -ENOENT;
  }
  wad_path[0] = '\0';
  while (fs_readdir(&dir, &ent) == 0 && ent.name[0] != '\0') {
    size_t n = strlen(ent.name);

    if (ent.type == FS_DIR_ENTRY_FILE && n > 4 &&
        (strcmp(ent.name + n - 4, ".wad") == 0 || strcmp(ent.name + n - 4, ".WAD") == 0)) {
      snprintf(wad_path, sizeof(wad_path), "/SD:/%s", ent.name);
      break;
    }
  }
  fs_closedir(&dir);

  return wad_path[0] == '\0' ? -ENOENT : 0;
}

Rules:

• CONFIG_SAMPLE_DOOM_WAD is tried first (default /SD:/doom1.wad); if the file exists it is used.
• If it does not exist, the root directory is scanned and the first .wad or .WAD found is used. Subdirectories are not entered.
• If there is none, it prints no .wad file on the card on the serial port and exits.

File access inside the engine also goes through the Zephyr file system: src/doom_libc.c replaces fopen, fread, fwrite and the like with fs_open, fs_read, fs_write, and relative paths (./doom.cfg, .savegame/) land under the second argument base_dir of doom_open(); the example passes /SD:, so the configuration and save files are written to the root of the card.

Building

The following commands are run in the workspace. doomgeneric is a git submodule and must be fetched before the first build, or CMake reports doomgeneric sources missing:

cd ~/f101-zephyr/zephyr-components/doom
git submodule update --init doomgeneric

Then build. The example’s CMakeLists.txt adds ../.. (that is, the doom component) to ZEPHYR_EXTRA_MODULES itself, so it does not have to be given on the command line:

. ~/f101-zephyr/env.sh
cd ~/f101-zephyr
west build -b yuzukineko -d build/doom-app zephyr-components/doom/samples/doom_player

The artifact is build/doom-app/zephyr/zephyr.bin, about 4.8 MB (28.89% of the RAM region used), linked at 0x40000000.

Running

For the download procedure see Building and running:

xfel ddr f101-s3
xfel write 0x40000000 build/doom-app/zephyr/zephyr.bin
xfel exec 0x40000000

The console is UART1 (115200 8N1). Put doom1.wad on the TF card before starting; what follows describes, in order, what appears on the serial port and the screen.

Output after running

1. Mount the TF card and find the WAD. fs_mount() mounts /SD:, and after pick_wad() has selected a WAD it prints WAD <path> on the serial port:

WAD /SD:/doom1.wad

2. The engine starts, reads the WAD and writes the configuration. doom_open() initializes the engine; the WAD is read out through the fopen/fread that doom_libc.c wires to the Zephyr file system, and the configuration file is written back to the card. The serial port prints the engine’s initialization stages in order, up to graphics initialization:

Z_Init: Init zone memory allocation daemon.
zone memory: 0x40566fe0, 600000 allocated for zone
M_LoadDefaults: Load system defaults.
  default file: /SD:/doom.cfg
saving config in /SD:/doom.cfg
W_Init: Init WADfiles.
 adding /SD:/doom1.wad
                            DOOM Shareware
...
S_Init: Setting up sound.
startskill 2  deathmatch: 0  startmap: 1  startepisode: 1
I_InitGraphics: DOOM screen size: w x h: 320 x 200

The 600000 of zone memory is hexadecimal, equal to 6 MiB, matching the default of CONFIG_DOOM_ZONE_SIZE_MB. saving config means doom.cfg was written to the root of the card.

3. On-screen buttons are initialized. After pad_main() has created the 12 LVGL buttons it prints a pad: line; when the touchscreen path (HAS_TOUCH) is enabled it shows touch on. Before that GT967 has detected 1024×768 and up to 5 touch points:

[00:00:00.564,000] <inf> gt967: GT967 firmware 0x1040, 1024x768
[00:00:00.569,000] <inf> gt967: configuration 0x63: 1024 x 768, up to 5 point(s), module switch 0x04
...
R_Init: Init DOOM refresh daemon - ..pad: 12 keys, display 1024x768, touch on

The LVGL display resolution is 1024×768, so the dy mentioned later is 168.

4. The main loop and frame statistics. Every 5 seconds the main loop prints a statistics line: main-loop passes, pictures produced, audio underruns:

doom: 342 passes, 342 pictures, sound underruns 0
doom: 351 passes, 351 pictures, sound underruns 0

About 350 passes and 350 pictures every 5 seconds, that is about 70 per second, with sound underruns staying at 0. The game logic is the engine’s fixed 35 tics per second; the picture count here is the number of times DG_DrawFrame() is called in the main loop.

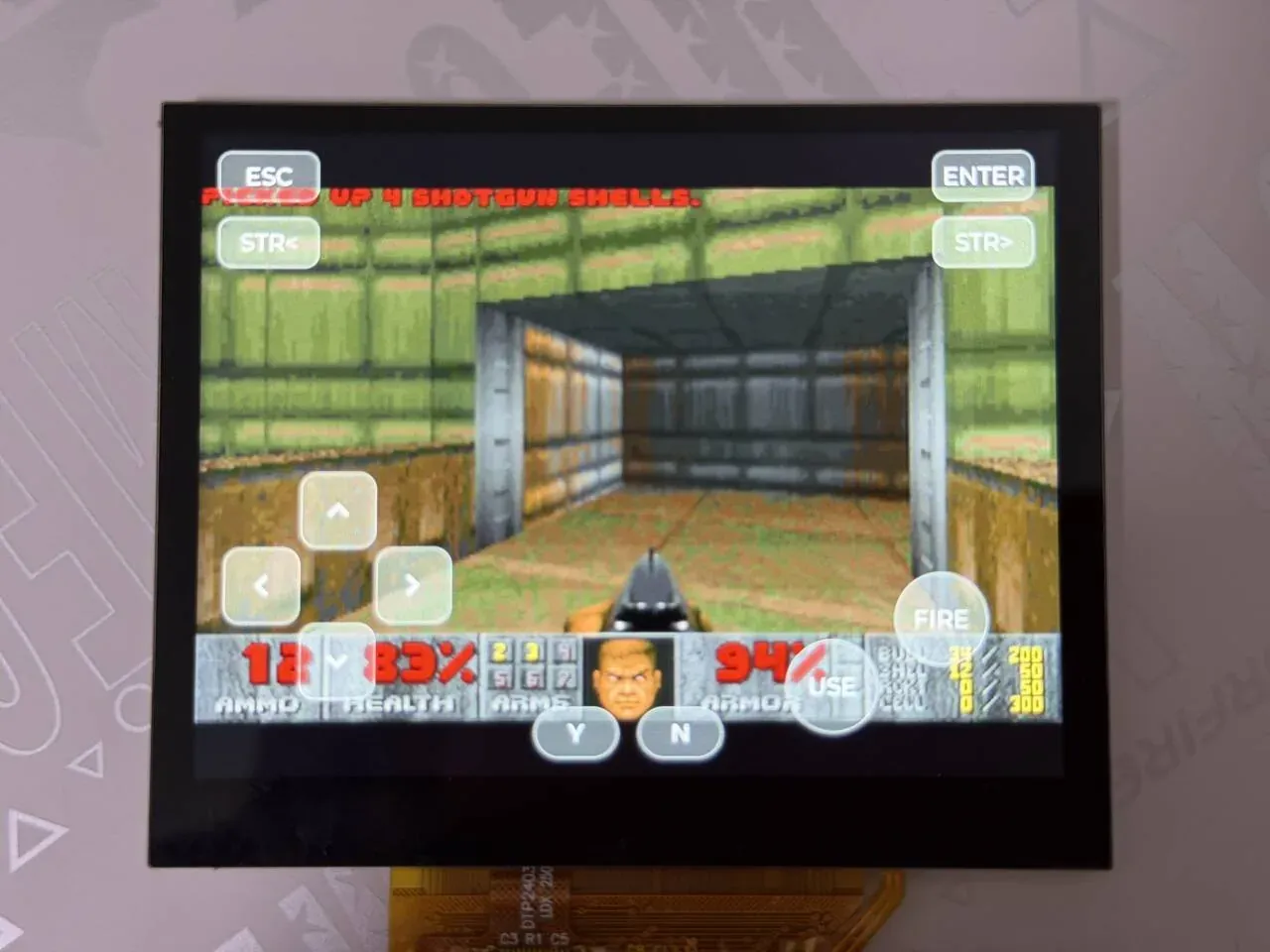

The screen shows the game picture with the semi-transparent on-screen buttons overlaid:

The photo shows the picture after entering a level: the Doom picture is enlarged and displayed in the middle of the panel, the status bar with ammo, health and armor is at the bottom, and the red text in the top left corner is the pickup message PICKED UP 4 SHOTGUN SHELLS.. The semi-transparent on-screen buttons are overlaid on the picture: ESC in the top left and ENTER in the top right, below them the strafe-left and strafe-right STR< and STR>; the direction pad in the bottom left; the two round FIRE and USE (open doors, operate) buttons on the right; and Y and N in the bottom middle.

Picture output

The picture goes from the engine to the screen in three steps.

1. The engine produces the picture. In CMAP256 mode the engine draws a 320×200 8-bit indexed picture, kept in DG_ScreenBuffer. DG_DrawFrame() in src/doom_port.c converts it to RGB565 with the engine’s palette and writes it into the buffer the application supplies:

void DG_DrawFrame(void)
{
  const uint8_t *src = (const uint8_t *)DG_ScreenBuffer;

  if (palette_changed) {
    for (int i = 0; i < 256; i++) {
      palette565[i] = ((colors[i].r & 0xf8) << 8) | ((colors[i].g & 0xfc) << 3) |
          (colors[i].b >> 3);
    }
    palette_changed = false;
  }
  if (out_buf == NULL) {
    return;
  }
  for (int i = 0; i < DOOM_WIDTH * DOOM_HEIGHT; i++) {
    out_buf[i] = palette565[src[i]];
  }
  drawn = 1;
}

The palette is recomputed only when the engine has changed it (turning red when hurt, yellow when picking things up, and so on).

2. The application rotates buffers. Every pass, the main loop of main.c first asks video_acquire() for the next buffer, has the engine draw into it, and calls video_present() when there is a new picture:

  while (true) {
    doom_set_frame_buffer(video_acquire());
    if (doom_run_frame()) {
      video_present(DOOM_WIDTH, DOOM_HEIGHT);
      drawn++;
    }

video.c allocates 4 buffers of 320 × 200 × 2 bytes in total (NBUF); video_present() first flushes the data cache to memory and then wakes the video thread.

3. Send to the display. The video thread calls display_sunxi_show_rgb(), handing the RGB565 picture to the display engine’s scaling video plane, which the hardware scales up to the whole screen (the board’s panel is 1024×768):

    img.data = buf[idx];
    img.width = ready_w;
    img.height = ready_h;
    img.stride = STRIDE;
    img.nonblock = false;
    ret = display_sunxi_show_rgb(disp, &img);

This call may wait for the next refresh, so it is placed in a separate thread that does not slow the engine down; the thread only displays the newest picture.

The LVGL buttons are drawn on another plane: CONFIG_DISPLAY_SUNXI_ARGB8888=y enables the ARGB8888 framebuffer plane, which is layered on top of the video plane, so the buttons cover the game picture semi-transparently. prj.conf does not set CONFIG_DISPLAY_SUNXI_FB_WINDOW_WIDTH/HEIGHT, so both are 0.

Sound

Sound effects only, no music is played.

• src/doom_sound.c mixes the 8-bit unsigned mono sound effects from the WAD into 16-bit stereo on demand, with up to 8 channels (NUM_CHANNELS), linear interpolation and left/right panning.
• audio.c starts an audio thread (priority 3) that takes 512 frames at a time (BLOCK_FRAMES), calls doom_audio_read() to get the mixed data, and then i2s_write() to send it to the codec. The codec consumes at a fixed rate, which is the source of the pacing; I2S is started only after 2 blocks (PREFILL) have been pre-filled into the queue.
• The output sample rate is CONFIG_SAMPLE_DOOM_RATE, default 48000; main() calls doom_audio_init(RATE) and then audio_init(RATE).
• The volume is hard-coded in audio.c:

  audio_codec_start_output(ctl);
  audio_codec_set_property(ctl, AUDIO_PROPERTY_OUTPUT_VOLUME, AUDIO_CHANNEL_ALL,
         (audio_property_value_t){.vol = 150});

The range is 0–255; change .vol to make it louder or quieter. If i2s_write() returns -EIO after I2S_TRIGGER_START, the data has run out: one underrun is counted and the pre-fill is done again; this count is the sound underruns in the 5-second statistics line.

To have no sound: write CONFIG_DOOM_SOUND=n in prj.conf and the component switches to the doom_audio_read() in doom_port.c that returns silence.

The on-screen buttons on the touchscreen

The buttons are all in samples/doom_player/src/pad.c; what follows covers “how the widgets are created”, “how a touch becomes a key code”, “how it reaches the engine” and “how to change the layout”.

Data flow

flowchart TD
    F["finger touches GT967<br/>I2C1, up to 5 points"] --> IN["Zephyr input subsystem<br/>input thread, priority 4, queue 64"]
    IN -->|"INPUT_CALLBACK_DEFINE"| CB["touch_event()<br/>records x, y, down of fingers[0..4] by MT_SLOT"]
    CB --> FG["fingers array"]
    subgraph PADT["pad thread, priority 7, one pass every 16 ms"]
        SCAN["touch_scan()<br/>hit-tests each button against the 5 fingers"]
        LV["lv_timer_handler()<br/>refreshes LVGL"]
    end
    FG --> SCAN
    SCAN -->|"state change"| ST["lv_obj_add_state / remove_state<br/>LV_STATE_PRESSED"]
    ST --> LV --> ARGB["ARGB plane button highlight"]
    SCAN -->|"doom_key(pressed, key)"| KQ["keyq[64]<br/>pressed in bit 8, key code in the low 8 bits"]
    KQ -->|"DG_GetKey()"| IPT["i_input.c<br/>ev_keydown / ev_keyup"]
    IPT -->|"D_PostEvent"| ENG["game logic<br/>key bindings in m_controls.c"]

Key points:

• LVGL’s pointer input is not used. An LVGL pointer device handles only one finger at a time, whereas the game needs the direction pad and fire pressed at the same time. So when there is a touchscreen, finger positions are read directly from Zephyr input events and the button widgets only display state.
• The touchscreen is the zephyr,touch entry of the devicetree chosen, which on this board is the GT967. HAS_TOUCH is decided with DT_NODE_EXISTS(DT_CHOSEN(zephyr_touch)); a board without a touchscreen takes another path, see below.

How the LVGL widgets are created

Each button is an lv_button plus an lv_label, created by key_add(), positioned with LV_ALIGN_TOP_LEFT plus an offset:

static void key_add(int x, int y, int w, int h, const char *text, unsigned char key, int radius)
{
  lv_obj_t *b = lv_button_create(lv_screen_active());
  lv_obj_t *l = lv_label_create(b);

  lv_obj_set_size(b, w, h);
  lv_obj_align(b, LV_ALIGN_TOP_LEFT, x, y);
  lv_obj_set_style_radius(b, radius, 0);
  lv_obj_set_style_bg_color(b, lv_color_white(), 0);
  lv_obj_set_style_bg_opa(b, LV_OPA_30, 0);
  lv_obj_set_style_bg_color(b, lv_color_make(255, 200, 60), LV_STATE_PRESSED);
  lv_obj_set_style_bg_opa(b, LV_OPA_70, LV_STATE_PRESSED);
  lv_obj_set_style_border_color(b, lv_color_white(), 0);
  lv_obj_set_style_border_opa(b, LV_OPA_50, 0);
  lv_obj_set_style_border_width(b, 2, 0);
  lv_obj_set_style_shadow_width(b, 0, 0);
  lv_obj_set_style_text_font(l, &lv_font_montserrat_28, 0);
  lv_obj_set_style_text_color(l, lv_color_white(), 0);
  lv_label_set_text(l, text);
  lv_obj_center(l);
#if !HAS_TOUCH
  lv_obj_add_event_cb(b, key_event, LV_EVENT_ALL, (void *)(uintptr_t)key);
#endif

  if (nkeys < MAX_KEYS) {
    pad_keys_tbl[nkeys++] = (struct pad_key){
      .obj = b, .x = x, .y = y, .w = w, .h = h, .key = key,
    };
  }
}

• Normally it is 30%-opaque white; when pressed (LV_STATE_PRESSED) it becomes 70%-opaque orange-yellow, so a press is obvious.
• radius controls the shape: the direction keys and function keys use a small corner radius, FIRE and USE pass LV_RADIUS_CIRCLE and become circles, and Y and N are pill-shaped.
• The font is lv_font_montserrat_28 (CONFIG_LV_FONT_MONTSERRAT_28=y in prj.conf); the direction key glyphs use the LVGL built-in symbols LV_SYMBOL_LEFT and so on.
• Creating a button also registers an entry in pad_keys_tbl[] (position, size, key code), and the hit test relies on that table. The table has only MAX_KEYS entries; buttons beyond that are drawn but do not respond to touch.

The screen itself must first be made transparent, otherwise there is a black background behind the buttons that covers the video plane below. pad_main() does this at the start, then creates all 12 buttons and prints a pad: log line when it is done:

static void pad_main(void *a, void *b, void *c)
{
  lv_obj_set_style_bg_opa(lv_screen_active(), LV_OPA_TRANSP, 0);

  /*
   * The layout was drawn for a 1024x600 panel, the keys at the bottom stay at the bottom of
   * a taller one. The picture is scaled to the middle.
   */
  const int dy = lv_display_get_vertical_resolution(NULL) - 600;

  key_add(30, 330 + dy, 90, 90, LV_SYMBOL_LEFT, DOOM_KEY_LEFT, 20);
  key_add(210, 330 + dy, 90, 90, LV_SYMBOL_RIGHT, DOOM_KEY_RIGHT, 20);
  key_add(120, 240 + dy, 90, 90, LV_SYMBOL_UP, DOOM_KEY_UP, 20);
  key_add(120, 420 + dy, 90, 90, LV_SYMBOL_DOWN, DOOM_KEY_DOWN, 20);

  key_add(830, 360 + dy, 110, 110, "FIRE", DOOM_KEY_FIRE, LV_RADIUS_CIRCLE);
  key_add(700, 440 + dy, 110, 110, "USE", DOOM_KEY_USE, LV_RADIUS_CIRCLE);

  key_add(20, 20, 120, 60, "ESC", DOOM_KEY_ESCAPE, 16);
  key_add(880, 20, 120, 60, "ENTER", DOOM_KEY_ENTER, 16);
  key_add(20, 100, 120, 60, "STR<", DOOM_KEY_STRAFE_L, 16);
  key_add(880, 100, 120, 60, "STR>", DOOM_KEY_STRAFE_R, 16);
  key_add(400, 520 + dy, 100, 60, "Y", DOOM_KEY_Y, 30);
  key_add(524, 520 + dy, 100, 60, "N", DOOM_KEY_N, 30);
  printk("pad: %d keys, display %dx%d, touch %s\n", nkeys,
         lv_display_get_horizontal_resolution(NULL), lv_display_get_vertical_resolution(NULL),
         HAS_TOUCH ? "on" : "off");

  while (true) {
#if HAS_TOUCH
    touch_scan();
#endif
    lv_timer_handler();
    k_msleep(16);
  }
}

The coordinates are drawn for 1024×600; dy is the actual screen height minus 600, and on this board that is 1024×768, so dy is 168 and the lower group of buttons shifts down as a whole to sit against the bottom edge of the screen. ESC, ENTER, STR< and STR> at the top do not add dy and stay fixed near the top.

The thread is created by pad_start() (4096-byte stack, priority 7), called in main.c before doom_open():

int pad_start(void)
{
  k_tid_t tid = k_thread_create(&thread, pad_stack, STACK_SIZE, pad_main, NULL, NULL, NULL,
              PRIORITY, 0, K_NO_WAIT);

  k_thread_name_set(tid, "pad");

  return 0;
}

How a touch becomes a key code

Step one: receive input events. The GT967 driver reports by multi-touch slot (MT slot); the callback only records the coordinates and pressed state of each slot:

#define TOUCH_SLOTS  5

static struct {
  int x, y;
  bool down;
} fingers[TOUCH_SLOTS];
static int cur_slot;

static void touch_event(struct input_event *evt, void *user_data)
{
  switch (evt->code) {
  case INPUT_ABS_MT_SLOT:
    cur_slot = CLAMP(evt->value, 0, TOUCH_SLOTS - 1);
    break;
  case INPUT_ABS_X:
    fingers[cur_slot].x = evt->value;
    break;
  case INPUT_ABS_Y:
    fingers[cur_slot].y = evt->value;
    break;
  case INPUT_BTN_TOUCH:
    fingers[cur_slot].down = evt->value != 0;
    break;
  }
}
INPUT_CALLBACK_DEFINE(DEVICE_DT_GET(DT_CHOSEN(zephyr_touch)), touch_event, NULL);

The touch coordinates are screen coordinates (1024×768), the same coordinate system as the button coordinates, so they can be compared directly. The callback runs in the input subsystem’s thread; boards/yuzukineko.conf raises that thread’s priority to 4 (higher than the pad thread’s 7, and higher than the 6 of the main thread the game runs on) and increases the queue to 64, so that finger events are not lost when a game frame takes a long time:

CONFIG_INPUT=y
CONFIG_INPUT_GT967_MAX_TOUCH_POINTS=5
CONFIG_INPUT_THREAD_PRIORITY_OVERRIDE=y
CONFIG_INPUT_THREAD_PRIORITY=4
CONFIG_INPUT_QUEUE_MAX_MSGS=64

Step two: touch_scan() is called by the pad thread every 16 ms and, for each button, checks whether any of the 5 fingers falls inside its rectangle (enlarged by HIT_MARGIN = 12 pixels on each side):

static void touch_scan(void)
{
  uint32_t now = k_uptime_get_32();

  for (int k = 0; k < nkeys; k++) {
    struct pad_key *key = &pad_keys_tbl[k];
    bool pressed = false;

    for (int f = 0; f < TOUCH_SLOTS; f++) {
      if (fingers[f].down && fingers[f].x >= key->x - HIT_MARGIN &&
          fingers[f].x < key->x + key->w + HIT_MARGIN &&
          fingers[f].y >= key->y - HIT_MARGIN &&
          fingers[f].y < key->y + key->h + HIT_MARGIN) {
        pressed = true;
      }
    }
    if (pressed) {
      key->hold_until = now + RELEASE_HOLD_MS;
    } else if ((int32_t)(now - key->hold_until) < 0) {
      pressed = true;
    }
    if (pressed != key->shown) {
      if (pressed) {
        lv_obj_add_state(key->obj, LV_STATE_PRESSED);
      } else {
        lv_obj_remove_state(key->obj, LV_STATE_PRESSED);
      }
      doom_key(pressed ? 1 : 0, key->key);
      key->shown = pressed;
    }
  }
}

A few details:

• A finger can be on several buttons at once, and each button is decided independently, so “forward + fire + turn left” can be pressed at the same time.
• A finger sliding out of one button and into another naturally releases the first and presses the second.
• A hold of RELEASE_HOLD_MS = 50 ms: the controller occasionally misses a frame of finger reporting (the finger is in fact still on the glass), and treating that as “release then press” would cause a jitter in the game, so the key is kept for another 50 ms after release.
• doom_key() is called only when the state changes, so the queue holds only the two kinds of event, “press” and “release”, and is not filled once every 16 ms. At the same time lv_obj_add_state / lv_obj_remove_state update the widget appearance.

How the key code reaches the engine

doom_key() puts the event into a 64-entry ring buffer, with pressed in bit 8 and the key code in the low 8 bits; the read and write pointers are atomic variables, so it can be called from any thread (src/doom_port.c):

#define KEYQUEUE_SIZE 64

static uint16_t keyq[KEYQUEUE_SIZE];
static atomic_t key_w, key_r;

int DG_GetKey(int *pressed, unsigned char *key)
{
  atomic_val_t r = atomic_get(&key_r);
  uint16_t k;

  if (r == atomic_get(&key_w)) {
    return 0;
  }
  k = keyq[r % KEYQUEUE_SIZE];
  atomic_set(&key_r, r + 1);
  *pressed = k >> 8;
  *key = k & 0xff;

  return 1;
}

void doom_key(int pressed, unsigned char key)
{
  atomic_val_t w = atomic_get(&key_w);

  if (w - atomic_get(&key_r) >= KEYQUEUE_SIZE) {
    return;
  }
  keyq[w % KEYQUEUE_SIZE] = (pressed ? 0x100 : 0) | key;
  atomic_set(&key_w, w + 1);
}

When the queue is full, new events are dropped. During the input stage of every doom_run_frame() the engine keeps calling DG_GetKey() until it is drained (i_input.c), turning a press into ev_keydown and a release into ev_keyup and calling D_PostEvent(). The port layer does no key-code translation: TranslateKey() returns the value unchanged.

So the key codes are the doomgeneric engine’s own key codes. include/doom_zephyr/doom.h gives the common ones:

Macro	Value	Default function in the engine
DOOM_KEY_UP	0xad	forward
DOOM_KEY_DOWN	0xaf	backward
DOOM_KEY_LEFT	0xac	turn left
DOOM_KEY_RIGHT	0xae	turn right
DOOM_KEY_STRAFE_L	0xa0	strafe left
DOOM_KEY_STRAFE_R	0xa1	strafe right
DOOM_KEY_USE	0xa2	open doors, press switches
DOOM_KEY_FIRE	0xa3	fire
DOOM_KEY_ESCAPE	27	menu, back
DOOM_KEY_ENTER	13	confirm in menus
DOOM_KEY_TAB	9	map
DOOM_KEY_SHIFT	0x80 + 0x36	run
DOOM_KEY_CTRL	0x80 + 0x1d	(the engine’s right Ctrl)
DOOM_KEY_ALT	0x80 + 0x38	(the engine’s right Alt, the strafe modifier)
DOOM_KEY_Y, DOOM_KEY_N	'y', 'n'	Yes / No in menus (for example the quit confirmation)

Letter and number keys are their lowercase ASCII values (for example '1' to '7' select weapons). For other engine key codes see doomgeneric/doomgeneric/doomkeys.h; the default bindings are in m_controls.c (for example key_fire = KEY_FIRE).

Note: the 12 buttons the example draws by default do not include SHIFT (run), TAB (map) or weapon-switch keys. Add them yourself as described in the next section if you need them.

Boards without a touchscreen

With !HAS_TOUCH, each button gets an LVGL event callback and is driven by LVGL’s pointer device:

#if !HAS_TOUCH
static void key_event(lv_event_t *e)
{
  unsigned char key = (unsigned char)(uintptr_t)lv_event_get_user_data(e);
  lv_event_code_t code = lv_event_get_code(e);

  if (code == LV_EVENT_PRESSED) {
    doom_key(1, key);
  } else if (code == LV_EVENT_RELEASED || code == LV_EVENT_PRESS_LOST) {
    doom_key(0, key);
  }
}
#endif

This path can only press one key at a time, and requires the board to configure an LVGL pointer input device itself (a mouse or trackpad, for example); the example does not configure one.

How to change the button layout

All the changes are in pad.c.

1. Change position, size, text, shape. Change the arguments of key_add(x, y, w, h, text, key code, radius) in pad_main() directly. The coordinates are based on 1024×600, the lower group adds dy and the upper group does not.

2. Change the function a button maps to. Swap the sixth argument, for example replacing USE with space (the engine’s ' ') or changing a key to DOOM_KEY_SHIFT (run).

3. Add buttons. First raise MAX_KEYS from 12 (the current 12 fill it exactly), then add key_add calls in pad_main(). Here is an example:

#define MAX_KEYS  16

  /* in pad_main(), after the other key_add calls */
  key_add(30, 520 + dy, 90, 60, "RUN", DOOM_KEY_SHIFT, 16);
  key_add(130, 520 + dy, 90, 60, "MAP", DOOM_KEY_TAB, 16);
  key_add(240, 520 + dy, 60, 60, "1", '1', 16);   /* select weapon 1 */
  key_add(310, 520 + dy, 60, 60, "2", '2', 16);   /* select weapon 2 */

New buttons must not overlap existing ones, or one finger will hit two keys at once.

4. Tuning the feel.

Constant	Default	Effect
MAX_KEYS	12	capacity of the button table, and the upper limit on buttons that can respond to touch
HIT_MARGIN	12	pixels by which the hit area is enlarged around a button; larger makes it easier to hit, but the areas of adjacent buttons then overlap
RELEASE_HOLD_MS	50	milliseconds a key stays held after the finger leaves
TOUCH_SLOTS	5	number of fingers handled at once; must not exceed CONFIG_INPUT_GT967_MAX_TOUCH_POINTS
PRIORITY	7	pad thread priority (a larger number is a lower priority)

5. Removing buttons. Just delete the corresponding key_add line. Keyboard-type input (a USB keyboard, for example) is not wired up in the example; wiring it up also means calling doom_key().

Features and where to change them

Feature	Location	How to change
WAD path	SAMPLE_DOOM_WAD in Kconfig; pick_wad() in main.c	Change the option, or the search rules in the function
Configuration, save-file directory	doom_open(wad_path, "/SD:") in main.c	Change the second argument
Game memory	CONFIG_DOOM_ZONE_SIZE_MB (default 6)	Change the option, range 4–32; the game allocates this much from the heap at once
Picture buffers	NBUF in video.c (4)	Usually no need to change
Volume	.vol = 150 in audio.c	Change the value (0–255)
Sound sample rate	CONFIG_SAMPLE_DOOM_RATE	Default 48000
On-screen button layout	pad_main() in pad.c	See the previous section
Statistics print interval	REPORT_MS in main.c (5000)	Change the macro

Each main-loop pass: doom_run_frame() has the engine process input and run the game tics that are due (if none are due it waits, and the wait calls k_msleep() through DG_SleepMs()), and then does sound and picture. The engine keeps time with DG_GetTicksMs() (k_uptime_get_32()).

Configuration options

Component (zephyr-components/doom/Kconfig)

Option	Default	Notes
CONFIG_DOOM	n	Builds the doomgeneric engine and platform layer; depends on RISCV and automatically selects FILE_SYSTEM
CONFIG_DOOM_ZONE_SIZE_MB	6	Size of the engine’s memory zone in MiB, range 4–32
CONFIG_DOOM_SOUND	y	Mixes sound effects; depends on I2S and AUDIO_CODEC; music is not played

Example (samples/doom_player/Kconfig)

Option	Default	Notes
CONFIG_SAMPLE_DOOM_WAD	"/SD:/doom1.wad"	WAD to load; when it is not found, falls back to the first .wad in the root directory
CONFIG_SAMPLE_DOOM_RATE	48000	Sound output sample rate

How to change them:

west build -b yuzukineko -d build/doom-app zephyr-components/doom/samples/doom_player -- -DCONFIG_SAMPLE_DOOM_WAD='"/SD:/freedoom1.wad"'

Main options in prj.conf

Option	Effect
CONFIG_DOOM=y	Pulls in the Doom component
CONFIG_CRC=y	CRC library
CONFIG_SDHC=y	SD host controller driver
CONFIG_DISK_ACCESS=y	Disk access interface
CONFIG_DISK_DRIVER_SDMMC=y	Uses the SD/MMC card as a disk
CONFIG_FILE_SYSTEM=y	File-system interface
CONFIG_FAT_FILESYSTEM_ELM=y	FatFs
CONFIG_FS_FATFS_EXFAT=y	Support for exFAT cards
CONFIG_FS_FATFS_LFN=y	Long file names
CONFIG_MAIN_STACK_SIZE=16384	Main thread stack; the engine runs on the main thread
CONFIG_COMMON_LIBC_MALLOC_ARENA_SIZE=-1	Lets the libc malloc use the remaining memory; the engine’s memory zone is allocated from it
CONFIG_HEAP_MEM_POOL_SIZE=262144	Kernel heap
CONFIG_MAIN_THREAD_PRIORITY=6	Main thread (game) priority
CONFIG_FPU=y, CONFIG_FPU_SHARING=y	Hardware floating point, shared between threads
CONFIG_I2S=y, CONFIG_AUDIO=y, CONFIG_AUDIO_CODEC=y	Sound output
CONFIG_DMA=y	DMA used by I2S
CONFIG_DISPLAY=y	Display driver
CONFIG_DISPLAY_SUNXI_ARGB8888=y	ARGB plane, the one the LVGL buttons are drawn on
CONFIG_LVGL=y	LVGL graphics library
CONFIG_LV_COLOR_DEPTH_32=y	32-bit color depth, matching ARGB8888
CONFIG_LV_Z_MEM_POOL_SIZE=131072	LVGL memory pool
CONFIG_LV_Z_VDB_SIZE=4	LVGL drawing buffer as a percentage of the display
CONFIG_LV_FONT_MONTSERRAT_28=y	Font used for the button text
CONFIG_LV_FONT_MONTSERRAT_16=y	Font size 16, not used directly by the button code

The touchscreen options in boards/yuzukineko.conf (CONFIG_I2C, CONFIG_INPUT, CONFIG_INPUT_GT967_MAX_TOUCH_POINTS=5 and the input thread’s priority and queue length) are covered in the earlier “How a touch becomes a key code” section.

Code structure

File	Contents
zephyr-components/doom/src/doom_port.c	DG_* platform functions, key-code queue, doom_open() / doom_run_frame()
zephyr-components/doom/src/doom_libc.c	Wires fopen and the other file-stream functions to the Zephyr file system
zephyr-components/doom/shim/	Force-included headers that supply libc functions that are missing
zephyr-components/doom/src/doom_sound.c	Sound-effect mixing
zephyr-components/doom/include/doom_zephyr/doom.h	API and key codes exposed to applications
zephyr-components/doom/doomgeneric/	The doomgeneric engine (git submodule)
samples/doom_player/src/main.c	Mounts the TF card, picks the WAD, main loop
samples/doom_player/src/video.c	Picture-buffer rotation, sending to the video plane
samples/doom_player/src/audio.c	Audio thread, sending to the codec
samples/doom_player/src/pad.c	LVGL on-screen buttons and touch handling

Scope

• Sound effects only, no music.
• At most 8 sound-effect channels at once.
• The picture is fixed at 320×200 and scaled to the whole screen; changing the resolution is not supported.
• The volume is hard-coded in audio.c; change .vol when you need to adjust it.
• The only input is the touchscreen, handling at most 5 fingers at once; when you need input such as a keyboard, call doom_key() at the right place.
• Network play and gamepads are not supported.
• The 12 on-screen buttons by default have no run, map or weapon-switch keys; add them as described in the “How to change the button layout” section when you need them.
